| MPN | Article | Brand | In stock | Price | Discounts | Quantity | Description | Weight g. | Working voltage, V | Case diameter D, mm | Mounting type | Power | Factory packaging | Color | LED type | Plinth | Form factor | LED purpose | Appointment |
|---|
| 20673 | — | — |
96 грн.
|
|
— | Be sure to install the plate on the radiator. To avoid damage, do not allow the LEDs to heat up above 80 ° C | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| 20672 | — | — |
61 грн.
|
|
— | Be sure to install the plate on the radiator. To avoid damage, do not allow the LEDs to heat up above 80 ° C | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| 20674 | — | — |
127 грн.
|
|
— | Be sure to install the plate on the radiator. To avoid damage, do not allow the LEDs to heat up above 80 ° C | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| 20675 | — | — |
185 грн.
|
|
— | Be sure to install the plate on the radiator. To avoid damage, do not allow the LEDs to heat up above 80 ° C | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| 20676 | — | — |
285 грн.
|
|
— | Be sure to install the plate on the radiator. To avoid damage, do not allow the LEDs to heat up above 80 ° C | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| 20679 | CHINA | — |
9 грн.
|
|
— | Operating voltage - 12 volts. | 1.1 | 12 | — | — | 100мВт | 100 pieces. | Red | — | T10 | Миниатюрная T10 | — | Auto | ||||||||
| 20683 | CHINA | — |
15 грн.
|
|
— | 1.5 | — | — | DIP | — | 100 pieces. | Red | 6mm round | — | — | — | — | |||||||||
| 20738 | — | — |
70 грн.
|
— | Specifications: Interface: 4-bit or 8-bit HD44780 Power: 5V Cyrillic: no | — | — | — | — | — | — | — | — | — | — | — | — | |||||||||
| 20746 | — | — |
36 грн.
|
|
— | voltage: 12V power: 1.2W color temperature: 7000-8000K luminous flux: 288LM | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||
| 20750 | CHINA | — |
1 грн.
|
|

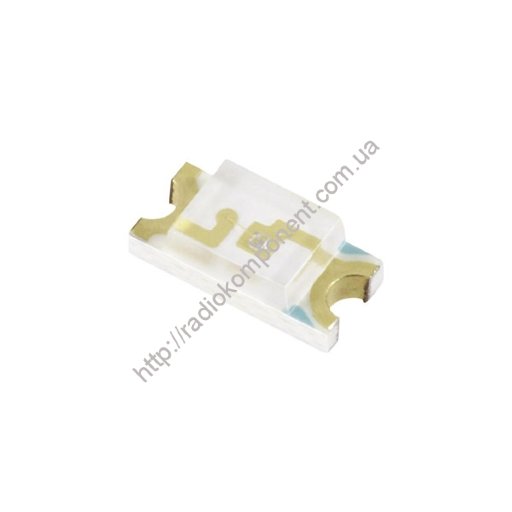

— | — | 0.12 | — | — | SMD | — | 2500pcs | White | 1206 | — | — | Indication | — | ||||||||
| 20751 | CHINA | — |
1 грн.
|
|
— | — | 0.12 | — | — | SMD | — | 3000pcs | Red | 1206 | — | — | Indication | — | ||||||||
LED 10W. warm white
#9513
|
20767 | CHINA | — |
14 грн.
|
|
— | A 10W LED is used as a light source in flashlights, light bulbs, spotlights and other lighting fixtures. Color WHITE (3000-3500K). Luminous flux 900 lm. It is powered by a stabilized current of 900mA. The voltage drop across the LED is 9-12V. Light angle 120 degrees. Requires installation on a radiator. | 4 | — | — | Screw | — | 100 pieces. | Warm white | 10W | — | — | Lighting | — | |||||||
| 20795 | CHINA | — |
0.80 грн.
|
|
— | — | 0.2 | — | — | DIP | — | 1000pcs | Red | 5x2x7mm | — | — | Indication | — | ||||||||
| 20796 | CHINA | — |
0.80 грн.
|
|
— | — | 0.2 | — | — | DIP | — | 1000pcs | Green | 5x2x7mm | — | — | Indication | — | ||||||||
| 20864 | CHINA | — |
0.80 грн.
|
|
— | Color: cold white Radiation angle, degrees: 120 Brightness, mcd: 1400...1600 Rated current, ma: twenty Size, diameter, mm: d=4.8 1600-1800mcd 3.0-3.2V BRILLIANT | 0.2 | — | — | DIP | — | 1000pcs | Cold white | 4.8mm round | — | — | Lighting | — | ||||||||
| 21742 | CHINA | — |
9 грн.
|
|
— | Service life: >40000h Number of LEDs: 3pcs Luminous flux: 110LM Protection class: IP66 Input voltage: DC12V Light source: SMD5630 Certification: CE and RoHS Power Consumption: 1.5W Emission color: white (6000K) Beam Angle: 160-180 degrees Size: 75 (l) * 12 (w) * 6 (h) mm DC current: 150mA (typ.); 170mA (max) | 5 | — | — | Screw | — | 20pcs | — | — | — | — | — | — | ||||||||
| 21743 | CHINA | — |
8 грн.
|
|
— | Color: Cool White Supply voltage: DC12V Size:49*11*4mm Protection class: IP65 | 2.5 | — | — | Screw | — | 20pcs | — | — | — | — | — | — | ||||||||
| 21842 | FORYARD | — |
1.50 грн.
|
|
— | 0.25 | — | — | DIP | — | 1000pcs | Green | 3mm round | — | — | Indication | — | |||||||||
| 23151 | CHINA | — |
0.80 грн.
|
|
— | 5730 0.5W 45lm 3000K | 0.12 | — | — | SMD | — | 3000pcs | Warm white | 5730 | — | — | Lighting | — | ||||||||
| 23152 | BRILLIANT | — |
8 грн.
|
|
— | 1. Forward voltage: 3.2V ~ 3.6V 2. Luminous flux: 100-120 lm 3. Rated current: 300mA 4. Color temperature: cool white 3000-3200K 5. Viewing angle: 120-140º 6. Operating temperature: -40° to +75° | 1 | — | — | SMD | — | 100 pieces. | Warm white | 1W | — | — | Lighting | — | ||||||||
| 23249 | SAMSUNG | — |
4.50 грн.
|
|
— | Forward Current (IF):570mA Forward Voltage (VF): 3.3-3.9V @ 400mA cool white | 0.12 | — | — | SMD | — | 2500pcs | Cold white | 2828 | — | — | LED backlight | — | ||||||||
| 23250 | SEOUL | — |
4 грн.
|
|
— | Forward Current (IF):120mA Pulse Forward Current (IFp):200mA Forward Voltage (VF): 2.95-3.4V @120mA cool white | 0.12 | — | — | SMD | — | 2500pcs | Cold white | 2835 | — | — | LED backlight | — | ||||||||
| 23251 | SAMSUNG | — |
6 грн.
|
|
— | LED for backlight LED TV 3228 3V 1.5W SAMSUNG SPBWH1322S1 KVC1BIB | 0.1 | — | — | SMD | — | 2500pcs | Cold white | 3228 | — | — | LED backlight | — | ||||||||
| 23252 | LG | — |
5.80 грн.
|
|
— | Forward Current (IF):140mA Forward Voltage (VF): 5.8-7.0V @ 93mA Power Dissipation (PD): 980mW cool white | 0.2 | — | — | SMD | — | 2500pcs | Cold white | 7030 | — | — | LED backlight | — | ||||||||
| 23253 | SAMSUNG | — |
6 грн.
|
|
— | Forward Current (IF):350mA Pulse Forward Current (IFp):500mA Forward Voltage (VF): 3.0-3.6V@ 350mA Power Dissipation(PD):1.25w Luminous Flux (LM) : 100-110lm @ 350mA cool white | 0.17 | — | — | SMD | — | 2500pcs | Cold white | 3535 | — | — | LED backlight | — | ||||||||
| 23254 | BRILLIANT | — |
2.50 грн.
|
|
— | 3.1-3.3V, 5700K, 40-45Lm, 120*, colorless transparent short lens | 0.5 | — | — | DIP | — | 500pcs | White | 8mm round | — | — | Lighting | — | ||||||||
LED 8mm red diffuse
#11311
|
23415 | BRILLIANT | — |
2 грн.
|
|
— | 2.0-2.2V, 620-625nm, 800-1000mcd, red diffuse lens. | 0.7 | — | — | DIP | — | 500pcs | Red | 8mm round | — | — | Indication | — | |||||||
LED 8mm green diffuse
#11312
|
23416 | BRILLIANT | — |
2 грн.
|
|
— | 3.0-3.2V, 520-525nm, 3000-4000mcd, green diffuse lens. | 0.7 | — | — | DIP | — | 500pcs | Green | 8mm round | — | — | Indication | — | |||||||
| 23546 | — | — |
16 грн.
|
— | — | — | — | — | — | — | — | — | — | — | — | — | ||||||||||
LED AL102GM
#11430
|
23547 | СНГ | — |
3 грн.
|
|
— | The main technical parameters of the LED AL102GM: • Color of radiation (glow): red; • Light intensity: not less than 0.4 cd/m2; • DC forward voltage: no more than 2.8 V; • Maximum spectral distribution: 0.69 µm; • Maximum allowable direct forward current: 20 mA; • Maximum pulse current at a given pulse duration: 60 mA at 2 ms; • The maximum allowable reverse DC voltage: 2 V; • The maximum allowable pulsed reverse DC voltage: 2 V. | 0.3 | — | — | DIP | — | 200pcs | Red | 5mm round | — | — | Indication | — |
