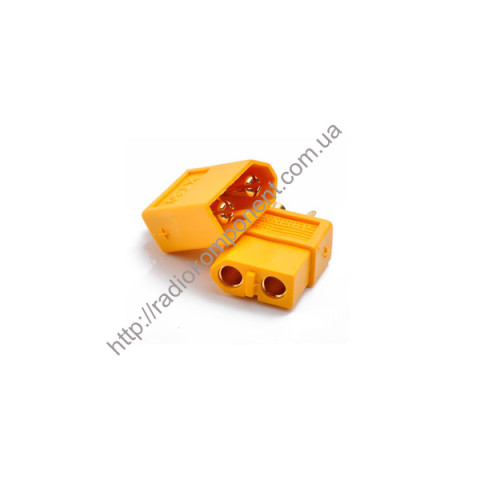

XT60 connector for connecting Li-Po, Li-on batteries (set)
| Manufacturer | AMASS |
| SKU | |
| Categories | Imported |
Features
| Type | Description | |
|---|---|---|
| Type | DC power | |
| Mechanical installation | per wire | |
| Number of contacts | 2 | |
| Plug or socket | Set | |
| Brand name | AMASS | |
| Weight g. | 6.5 | |
| Factory packaging | 250pcs | |
| Mounting type | DIP |
Description
The XT60 series connectors are among the most popular among modellers. The XT60 power connectors are highly reliable, as well as capable of handling high currents in a small size. XT60 connectors are capable of withstanding currents up to 60A for a long time.
The connectors are made of high temperature nylon with gold-plated spring-loaded contacts. Contacts allow you to “solder” a wire with a cross section of more than 3mm² to them. There is a fairly widespread opinion that the contacts of power connectors should have a flat surface to increase the contact area. In the XT60 connector, the contact is divided into 4 parts, which ensures a snug fit to the surface of the mating connector and makes the XT60 connector less dependent on contamination.
XT60 connectors are one of the most popular connectors for Lion and LiPo batteries.
Main technical characteristics:
Operating current 30 A
Contact pitch 7.2 mm
Operating voltage 500 V
Working temperature -20…120 °С.
Datasheet
