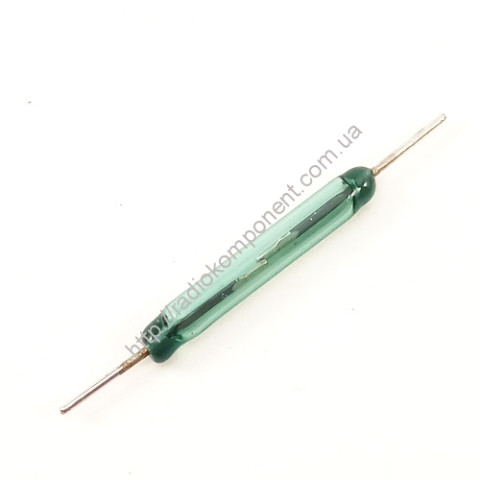

Reed switch KEM-6 gr.A
| Manufacturer | СНГ |
| SKU | |
| Categories | Switches, buttons |
Features
| Type | Description | |
|---|---|---|
| Brand name | СНГ | |
| Weight g. | 1.2 | |
| Factory packaging | 1000pcs | |
| Mounting type | DIP | |
| Contact set | 1 short. |
Description
Normally open.
Technical characteristics of the KEM-6 reed switch:
• Switched power, W, no more ...... 20
• Switched current range, A ...... 1 10-3 ... 1.0
• Switching voltage range, V ...... 0.05-250
• Resistance, Ohm, not more ...... 0.2
• Insulation resistance, MΩ, not less ...... 1000
• Dielectric strength of insulation, Veff/Vpost, not less than ...... 360/500
• Response time, ms, not more ...... 2.0
• Release time, ms, no more ...... 0.5
• Mass, g, not more ...... 1.2.
Datasheet
