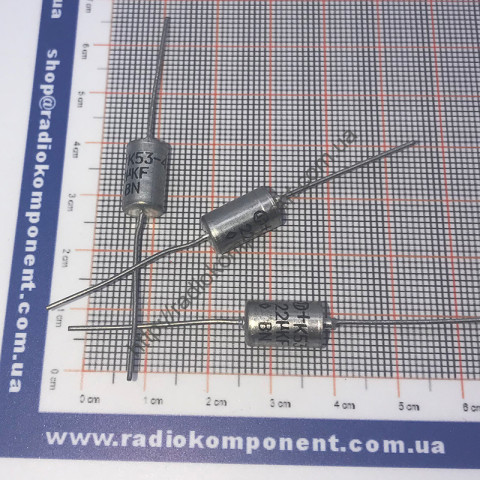

Capacitor K53-4 22 microfarad 20v 10%, niobium
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic electrolytic capacitors |
Features
| Type | Description | |
|---|---|---|
| Rated capacity, μF | 22 | |
| Working voltage, V | 20 | |
| Body length L, mm | 12 | |
| Case diameter D, mm | 7 | |
| Working temperature, С | -60..+85 | |
| Rated capacity tolerance,% | 10 | |
| Brand name | СНГ | |
| Pin type | Flexible Leads | |
| Weight g. | 2.8 | |
| Factory packaging | 100 pieces. | |
| Mounting type | DIP |
Description
Niobium oxide-semiconductor capacitors K53-4, polar, sealed in a metal case. Designed for operation in DC and pulsating current circuits.
Features of K53-4 series capacitors: low and stable leakage currents, high values of specific capacitance, improved temperature-frequency characteristics of capacitance and dielectric loss tangent.
Customers who bought Capacitor K53-4 22 microfarad 20v 10%, niobium also bought
| Name | Article | Brand | In stock | Price | Quantity | |
|---|---|---|---|---|---|---|
|
Resistor C2-23-0.125W 68 kOhm (+/-5%) | 27556 | — | 954 шт | 0.50 грн. | |
|
Capacitor K53-4A 2.2 microfarad 30v 10%, niobium | 27919 | — | 941 шт | 4.80 грн. | |
|
Capacitor K73-15 4700pF 400V 5% | 26784 | — | — | 3 грн. | — |
|
Resistor MLT-0.5 100 kOhm (+/-5%) | 27046 | — | — | 1 грн. | — |
|
Capacitor K53-4 47 microfarad 16v 20%, niobium | 27914 | — | — | 9.70 грн. | — |
|
Resistor C2-23-0.125W 68 kOhm (+/-5%)
0.50 грн.
|
|
Capacitor K53-4A 2.2 microfarad 30v 10%, niobium
4.80 грн.
|
|
Capacitor K73-15 4700pF 400V 5%
3 грн.
|
|

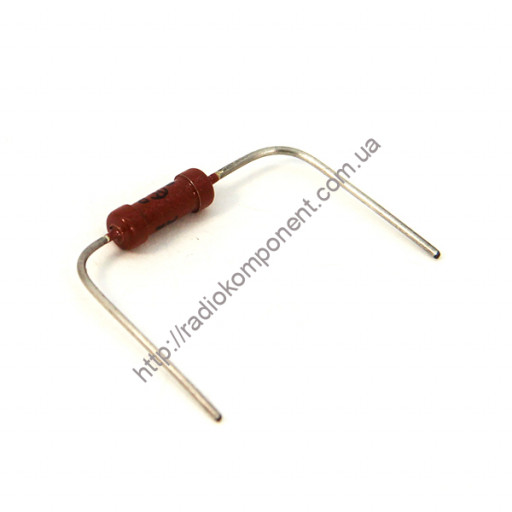

Resistor MLT-0.5 100 kOhm (+/-5%)
