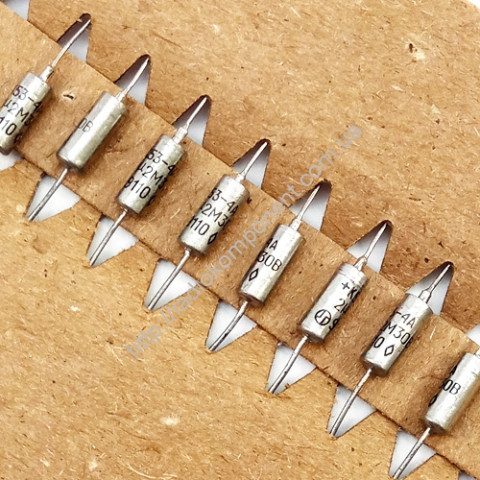

Capacitor K53-4A 2.2 microfarad 30v 20%, niobium
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic electrolytic capacitors |
Features
| Type | Description | |
|---|---|---|
| Rated capacity, μF | 2,2 | |
| Working voltage, V | 30 | |
| Body length L, mm | 10 | |
| Case diameter D, mm | 4 | |
| Working temperature, С | -60..+85 | |
| Rated capacity tolerance,% | 20 | |
| Brand name | СНГ | |
| Pin type | Flexible Leads | |
| Weight g. | 0.7 | |
| Factory packaging | 100 pieces. | |
| Mounting type | DIP |
Description
Niobium oxide-semiconductor capacitors K53-4, polar, sealed in a metal case. Designed for operation in DC and pulsating current circuits.
Features of K53-4 series capacitors: low and stable leakage currents, high values of specific capacitance, improved temperature-frequency characteristics of capacitance and dielectric loss tangent.
