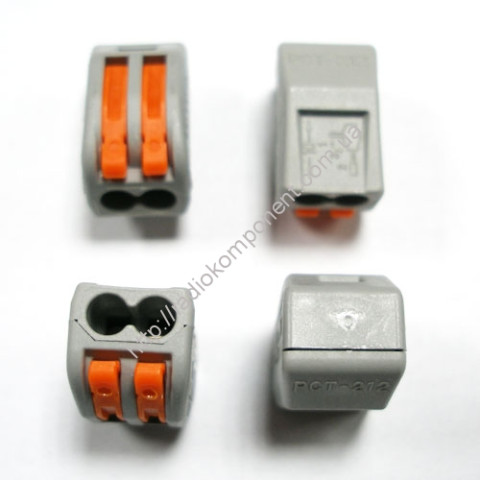

Connector PCT-212 analog WAGO
| Manufacturer | CHINA |
| SKU | |
| Categories | Imported |
Features
| Type | Description | |
|---|---|---|
| Type | Connector | |
| Mechanical installation | per wire | |
| Number of contacts | 2 | |
| Plug or socket | Socket | |
| Brand name | CHINA | |
| Factory packaging | 200pcs | |
| Mounting type | Clamp |
Description
Universal compact connector. Used without tools. Up to 2 different conductors can be connected:
- stranded from 0.08 to 4 mm.kv. / AWG 28 - 12
- single-core up to 2.5 mm.kv. /AWG 14.
How to use the connector :
- Open the clamping block using the built-in orange actuating lever until the lever engages and holds the clamp in the open position.
- Insert the conductor into the working hole of the connector.
- Return the lever to its original position, flush with the connector housing.
Electrical characteristics:
- Rated voltage 400 V
- Short burst 4 kV
- Maximum current for wires with a cross section of 4 mm.kv 32 A
- Maximum current for wires with a cross section of 2.5 mm.kv 24 A
- Maximum temperature during continuous operation 85 C
Color gray
