Breadboard 9*15 cm getinaks without tinning

Breadboard 9*15 cm getinaks without tinning

Manufacturer	CHINA
SKU	24076
Categories	Breadboards

Немає в наявності

16 грн.

0 грн.

Qty	Unit price	Total
1	—	—

Features

Type	Description
Board type	Односторонние
Brand name	CHINA
Mounting type	DIP
Factory packaging	50pcs
Weight g.	10

Description

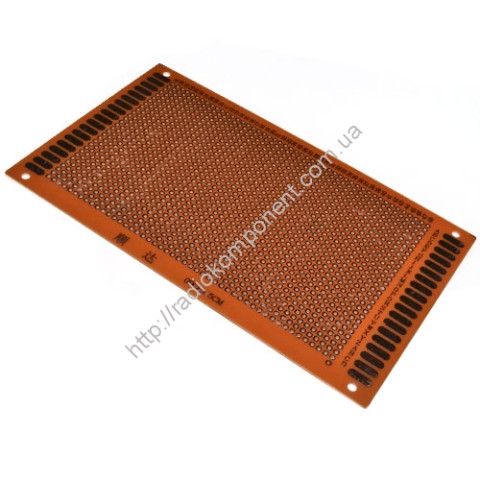

Breadboard printed circuit board on getinax. From the side of the components, the markup was made by the silk-screen method. On the soldering side, the board is covered with a preservative flux that protects the mounting patches from oxidation.
The prototyping board is one-sided without metallization of holes. Thickness - 1.2 mm. Pitch - 2.54mm. Overall dimensions 90x150 mm.
