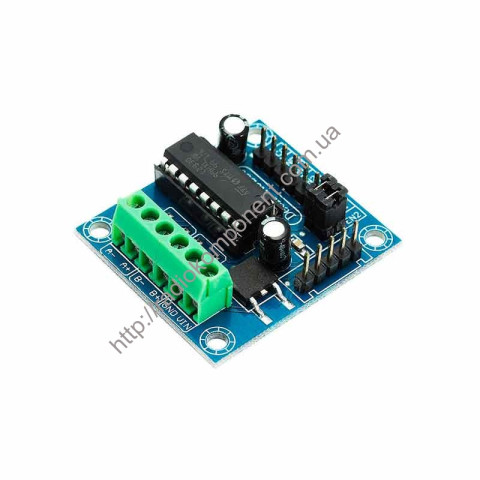

Mini L293D motor driver
| Manufacturer | CHINA |
| SKU | |
| Categories | ARDUINO |
Features
| Type | Description | |
|---|---|---|
| Device type | Motor control | |
| Brand name | CHINA | |
| Weight g. | 12 |
Description
The module on the L293D driver chip is designed to control small power stepper and collector motors. The module is made in a compact design and contains all the necessary components and control signals for the full control of an inductive load.
The most popular applications of the module are self-propelled and radio-controlled toys, watering systems, control of solenoids, electromagnetic motors, etc. The logic part can be powered either from the input voltage of the power part (VIN) or from a separate 5V power supply (VCC). When the module is powered from an external source (7-20V), you can use the internal 5V regulator of the module to power the Arduino control microcontroller. The module also has a 5-pin connector for connecting a 28BYJ-48 stepper motor.
Specifications:
Logic supply voltage: 4.5V to 7V
Power section voltage: 4.5 to 25 V
Maximum output current: 600mA
Peak current: 1.2A
Number of channels: 4 half bridges
Maximum logic "0" voltage: 1.5 V
Maximum switching frequency: 5 kHz
The maximum current of the built-in stabilizer: 500 mA
Overall dimensions: 35x35x10 mm.
Datasheet
