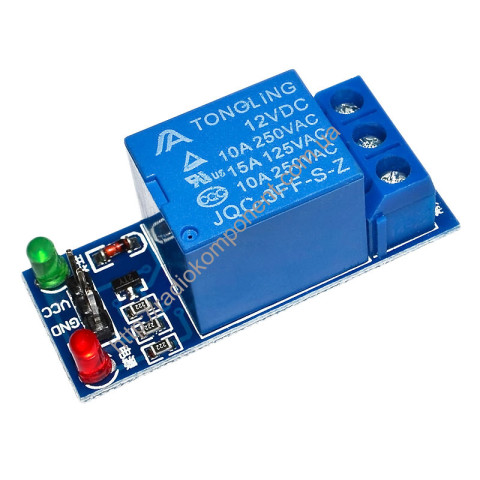

Module 1 relay 12V for ARDUINO
| Manufacturer | CHINA |
| SKU | |
| Categories | ARDUINO |
Features
| Type | Description | |
|---|---|---|
| Device type | Relay/Switching Modules | |
| Brand name | CHINA | |
| Weight g. | 12 |
Description
Single channel 12V relay module for Arduino is used to control various devices with high power consumption.
To use a relay module, you must connect a controlled device to it. Then you need to connect 12V power supply to the VCC and GND terminals of the module. A microcontroller, computer or other control device is connected to the IN control terminal of the relay module.
The relay module has two interfaces - for connecting a control device (microcontroller, computer) and for connecting controlled devices to the relay:
A 3-pin interface is used to connect the relay module to the control device. Contacts GND and VCC for connecting +12V, output IN for connecting a control signal.
To connect controlled devices to the relay, there are 3 clamp contacts on the board. Designation of contacts NC, COM, NO (normally closed, common, normally open contact, respectively).
Module Specifications:
Operating current, mA 15 ... 20
Control voltage, V 12
Relay JQC-3FF-SZ
Module size, mm 47 x 18 x 20.
