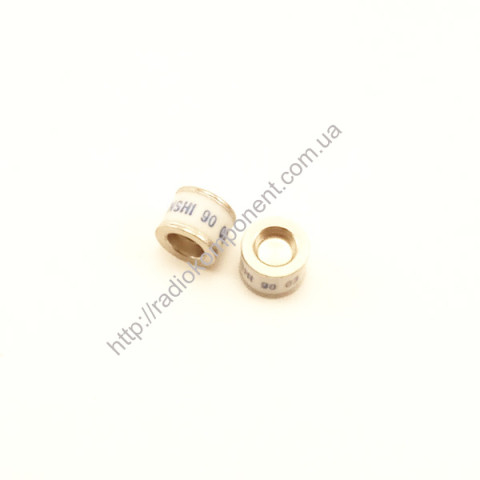

NS2R-90A-M 2-electrode arrester 90v
| Manufacturer | Nenshi Communication |
| SKU | |
| Categories | Dischargers |
Features
| Type | Description | |
|---|---|---|
| Brand name | Nenshi Communication | |
| Weight g. | 1 | |
| Factory packaging | 100 pieces. | |
| Mounting type | DIP |
Description
Provides additional electrical surge protection
Designed to protect communication equipment, industrial electronic equipment, consumer electronic equipment.
Rated breakdown voltage at 100 V/s, V (DC) 90
Tolerance, % ±20
Maximum impulse breakdown voltage at 100 V/µs, V ≤700
Rated impulse discharge current (8/20 µs, 10 cycles), kA 10
Discharge current (50Hz, 1sec, 5 cycles), A 10
Insulation resistance, GΩ ≥10
Capacitance, pF ≤1.5
Dimensions, mm 8x6.
