Radio constructor: Two-tube, medium-wave AM radio receiver of direct amplification 1-V-1 with electronic tuning

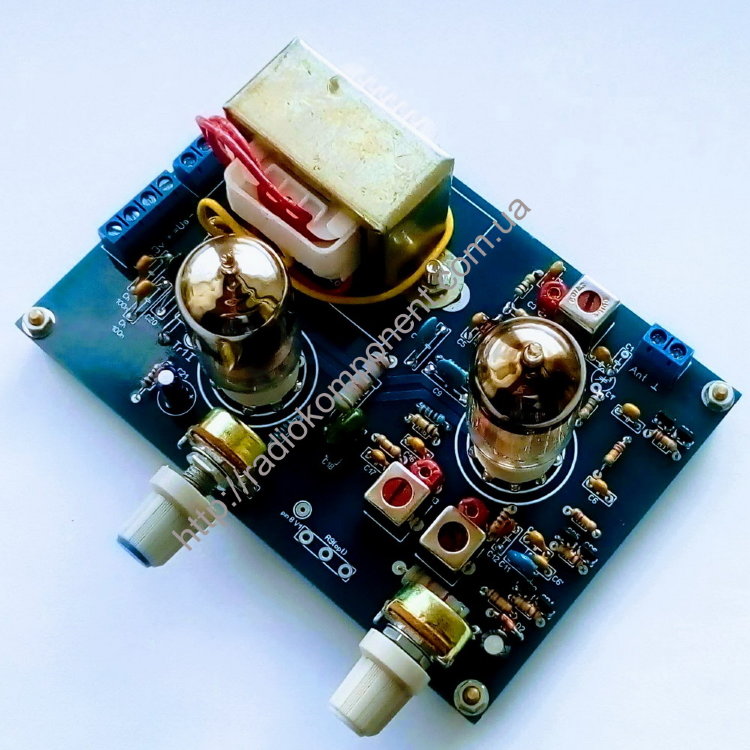

The 1-V-1 two-tube radio receiver provides loud-speaking reception of local and distant powerful radio stations to an external antenna.
Range: Mediumwave, 520 - 1620 KHz.
Electronic tuning by varicaps.
Consumption:
Anode: 250V, no more than 30mA.
Incandescent: 6.3V, no more than 0.8A.
Board size: 131 x 91 mm.
The kit is supplied as a printed circuit board and parts kit.

Read more...
