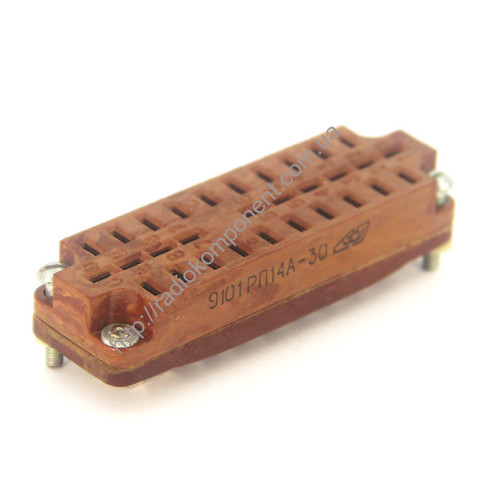

Connector RP14A-30

The RP14A-30 low-frequency rectangular connector is designed to work in electrical circuits of direct, variable frequency up to 3 MHz and pulsed currents with a voltage of 800 V.
RP14A connectors are manufactured in UHL and V climatic versions according to GOST 15150-69.
Type of acceptance - 1,5,9.
Specifications: BR0.364.024 TU (OTK), ESZ.656.015 TU (PZ).
Connectors RP14A are used for outdoor installation.
RP14A plugs and sockets are equipped with universal metal cases with locks and have straight and angled cable outlets. A sleeve is used to fasten the cable in the housing.
Plugs and sockets have guide catchers.
All-climate connectors with cable housings are manufactured in dust-splash-proof (with a sealing gasket) housings.
Contacts of plugs and sockets are floating.

Symbol structure:
RP14A-30
RP - Type of connector: manual articulation (dismemberment) of general purpose, low-frequency, rectangular;
14 - Serial number of development;
A - Constructive version with a unified casing;
30 - Number of contacts: 21, 30;
Г - Type of contact: Ш - pin contact (plug); G - socket contact (socket);
6 - Casing type:
- 3 - block part with instrument casing;
- 4 - block part with a passage casing;
- 6 - block part with a straight casing;
- 7 - block part with an angular casing;
- 8 - block part with a side casing;
5 - Contact coating: 5 - chemical oxide passive coating; no letter - silver
