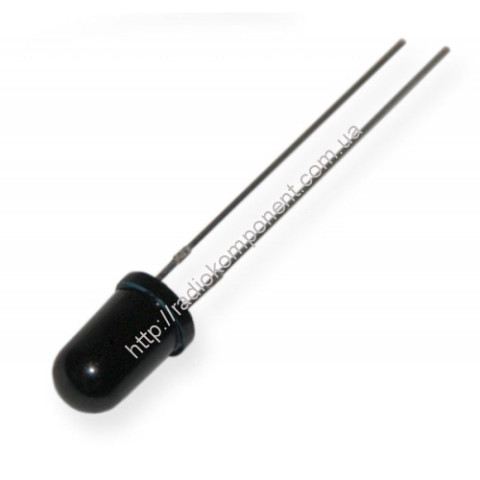

Infrared photodiode 5mm 940nm
| Manufacturer | CHINA |
| SKU | |
| Categories | LEDs |
Features
| Type | Description | |
|---|---|---|
| LED type | 5mm round | |
| Color | IR | |
| Brand name | CHINA | |
| Weight g. | 0.6 | |
| Factory packaging | 1000pcs | |
| Mounting type | DIP |
Description
Infrared (940nm) receiver (photodiode) 5mm.
Specifications:
Lens Diameter: 5mm
Wavelength: 940 nm
Power: 0.15W
Reception angle: 40 degrees
Forward Voltage (VF): 1.1-1.4V
Max Reverse Voltage: 5V
Maximum forward current: 30mA
Maximum pulse peak current: 75mA
Maximum power: 70mW
Operating temperature: -25° to 70° C.
