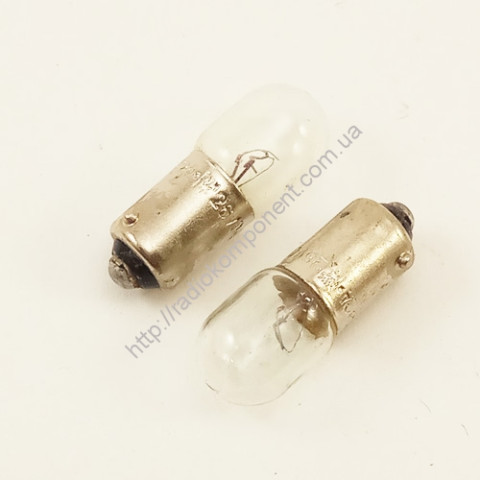

Lamp miniature МН-26-0.12 В9s/14

Manufacturer	СНГ
SKU	24139
Categories	radio tubes

В наявності 35164 шт

5 грн.

0 грн.

min. 1

Qty	Unit price	Total
1	—	—

Available discounts

10+	4,50 грн.
20+	4,25 грн.
50+	4 грн.

Features

Type	Description
Brand name	СНГ
Weight g.	2.1
Factory packaging	200pcs
Mounting type	DIP

Description

The miniature incandescent lamp MN-26-0.12 is used for lighting and illuminating the scales of radio and electrical appliances, alarms, in pocket, portable and battery lamps, bicycle headlights, for light indication, in aerial photography equipment, etc.
Miniature lamps operate on direct current from accumulators or dry cells and batteries, as well as in electrical networks of direct or alternating current with a frequency of 50 Hz.
• Voltage: 26V
• Current: 0.12 A
• Luminous flux: 12 lm
• Average burning time: 25000 h
• Flask diameter: 11 mm
• Lamp length: 30 mm
• Base type: B9s/14.
