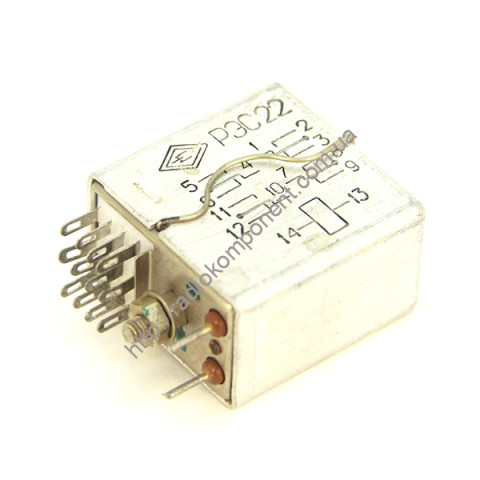

Relay RES22 RF4.500.125 60V

RES-22 RF4.500.125 sheathed, two-position, single-stable, with four switching contacts of a DC relay, designed for switching DC and AC electrical circuits with a frequency of 50 ... 1000 Hz.

Technical characteristics of the relay RES22 RF4.500.125:
• Winding resistance, Ohm ...... 2380-3080;
• Operate current, mA ...... 11;
• Release current, mA ...... 2;
• Operating voltage, V ...... 54-66;
• Insulation resistance between current-carrying elements and case:
- in normal climatic conditions ...... not less than 100 MOhm;
- in conditions of high humidity ...... not less than 10 MOhm;
- at maximum temperature ...... not less than 20 MΩ;
• Dielectric strength of insulation between current-carrying elements, current-carrying elements and housing ...... not less than 500 V;
• Response time ...... no more than 15 ms;
• Release time ...... no more than 8 ms.
