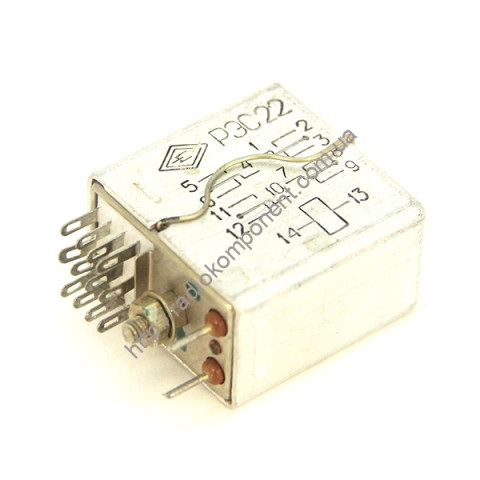

Relay RES22 RF4.500.131 24V

RES-22 RF4.500.131 sheathed, two-position, single-stable, with four switching contacts of a DC relay, designed for switching DC and AC electrical circuits with a frequency of 50 ... 1000 Hz.

• Winding resistance, Ohm ...... 565-747;
• Operate current, mA ...... 19;
• Release current, mA ...... 6;
• Operating voltage, V ...... 21.6-26.4;
• Insulation resistance between current-carrying elements and case:
- in normal climatic conditions ...... not less than 100 MOhm;
- in conditions of high humidity ...... not less than 10 MOhm;
- at maximum temperature ...... not less than 20 MΩ;
• Dielectric strength of insulation between current-carrying elements, current-carrying elements and housing ...... not less than 500 V;
• Response time ...... no more than 15 ms;
• Release time ...... no more than 8 ms.
