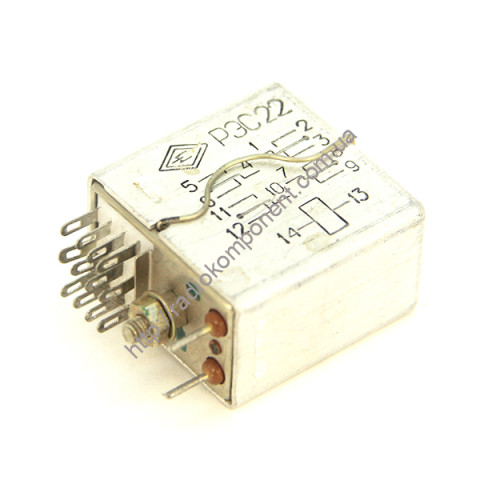

Relay RES22 RF4.523.023-06.02 48V
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic relays |
Features
| Type | Description | |
|---|---|---|
| Contact set | 4 switches | |
| Winding supply current | Constant | |
| Working voltage, V | 48 | |
| Maximum switching voltage | 500v | |
| Working current, A | 0.3 | |
| Winding resistance, Ohm | 2500 | |
| Polarization | neutral | |
| Number of windings | 1 | |
| Brand name | СНГ | |
| Weight g. | 34 | |
| Factory packaging | 10 pieces. | |
| Mounting type | DIP |
Description
RES-22 RF4.523.023-06.02 sheathed, two-position, single-stable, with four switching contacts of a DC relay, designed for switching DC and AC electrical circuits with a frequency of 50 ... 1000 Hz.
Technical characteristics of the relay RES-22 RF4.523.023-06.02:
• Winding resistance, Ohm ...... 2250-2875;
• Operate current, mA ...... 10.5;
• Release current, mA ...... 2.5;
• Operating voltage, V ...... 43.2-52.8;
• Insulation resistance between current-carrying elements and case:
- in normal climatic conditions ...... not less than 100 MOhm;
- in conditions of high humidity ...... not less than 10 MOhm;
- at maximum temperature ...... not less than 20 MΩ;
• Dielectric strength of insulation between current-carrying elements, current-carrying elements and housing ...... not less than 500 V;
• Response time ...... no more than 15 ms;
• Release time ...... no more than 8 ms.
