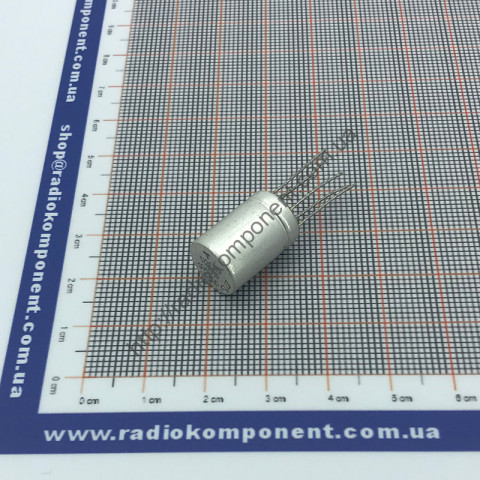

Relay RES15 RS4.591.004 (13.6-18.9V)
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic relays |
Features
| Type | Description | |
|---|---|---|
| Contact set | 1 switch | |
| Working voltage, V | 16 | |
| Maximum switching voltage | 150v | |
| Working current, A | 0.2 | |
| Winding resistance, Ohm | 720 | |
| Polarization | neutral | |
| Number of windings | 1 | |
| Brand name | СНГ | |
| Weight g. | 3 | |
| Factory packaging | 36pcs |
Description
Relay RES15 RS4.591.004 electromagnetic low-current, two-position, single-stable, DC-powered, with one changeover contact.
Designed for switching DC and AC electrical circuits with a frequency of 50 to 400 Hz.
RES15 relays are available with pin terminals for surface mounting on a printed circuit board through holes.
They provide the possibility of using both in printed circuit and surface mounting.
They are used as part of electronic switching control circuits in radio-electronic equipment for general and special purposes.
Switches currents from 0.01 to 0.2 A at a voltage of 6 to 150 V.
Case type - metal, leaky, dust and moisture protected.
