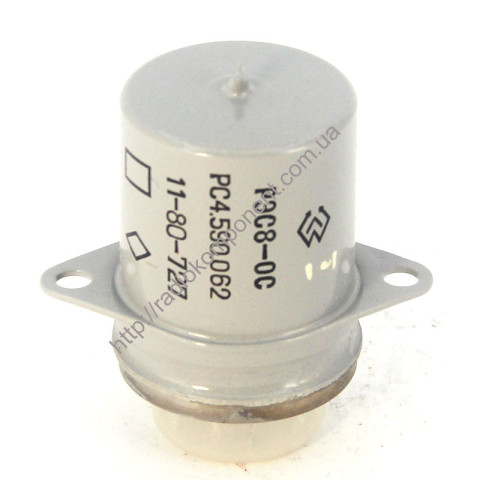

Relay RES8 RS4.590.062
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic relays |
Features
| Type | Description | |
|---|---|---|
| Contact set | 6 shifts | |
| Winding supply current | Constant | |
| Working voltage, V | 24…32 | |
| Maximum switching voltage | 220v | |
| Operating current no more | 80mA | |
| Winding resistance, Ohm | 178 | |
| Polarization | neutral | |
| Number of windings | 1 | |
| Brand name | СНГ | |
| Weight g. | 100 | |
| Factory packaging | 1 PC. | |
| Mounting type | DIP |
Description
Relay RES-8 RS4.590.062 sealed, single-stable, with six changeover contacts, powered by direct current, designed for switching electrical circuits of direct and alternating current.
Relay RES-8 complies with the requirements of GOST 16121-86 and specifications YAL0.455.014TU.
Technical characteristics of the relay RES-8 RS4.590.062:
• Supply current - constant;
• Winding resistance, Ohm ...... 162-198;
• Operate current, mA ...... 80;
• Release current, mA ...... 15;
• Operating voltage, V ...... 24-32;
• Insulation resistance between current-carrying elements, between current-carrying elements and case, MOhm, not less than:
- in normal climatic conditions (the winding is de-energized) ...... 200;
- in conditions of high humidity ...... 20;
- at maximum temperature (after holding the winding under operating voltage or current) ...... 50;
• Test alternating voltage, V:
- under normal climatic conditions:
- between current-carrying elements and the body ...... 850;
- between current-carrying elements ...... 750;
- in conditions of high humidity:
- between current-carrying elements and the body ...... 600;
- between current-carrying elements ...... 450;
- at reduced atmospheric pressure between current-carrying elements and the case, between current-carrying elements ...... 235.
