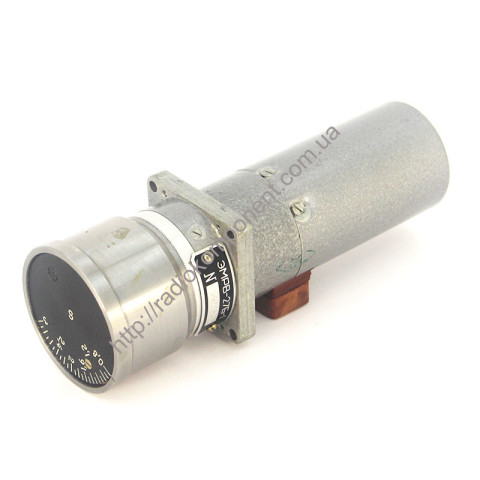

Time relay EMRV-27B-1 0.8-3 sec

EMRV-27B-1 0.8-3 sec electric machine time relay is designed for switching electrical circuits with certain pre-set time delays and is used in industrial equipment for various purposes, to obtain time delays in industrial automation circuits and relay protection.
Assigned resource 10,000 operations, with a time delay less than or equal to 27s; 75h - with time delay over 27s

Main technical characteristics:
DC supply voltage, V 27 ± 2.7
Supply voltage ripple amplitude, no more than 1% of the supply voltage value
Current consumption at temperatures from 15°C to 70°C, A, not more than with the engine on 0.55, after the engine is stopped 0.40
Insulation resistance during the service life, kOhm, not less than 20.
