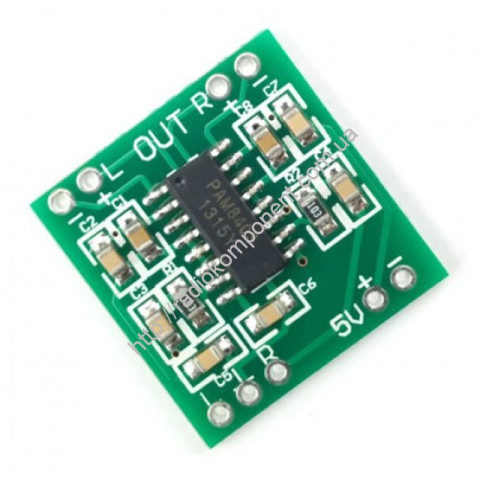

Stereo audio amplifier 2x3W D-class based on PAM8403
| SKU | |
| Categories | Finished goods |
Features
Description
Stereo audio amplifier 2x3W D-class based on PAM8403
Output power 2х3W, at supply voltage 5V, load 4Ω
PAM8403 2x3W stereo D-class amplifier. Low coefficient of non-linear
distortion allows you to get high quality sound with sufficient
output power. New, filterless PAM8403 architecture with
directly connecting the speakers, thereby greatly simplifying
harness and circuit as a whole (and cost). The effectiveness of modern
D-class amplifiers are much higher than analog (AB-class) amplifiers with almost
the same sound quality, the main application is portable electronics
self-powered (acoustic systems in laptops, tablets,
monitors, portable TVs...).
Specifications:
1. Supply voltage, V 2.5-5.5
2.Efficiency up to 90%
3. Module dimensions, mm 19x21x3
4. Operating temperature range -40°C +85°C
