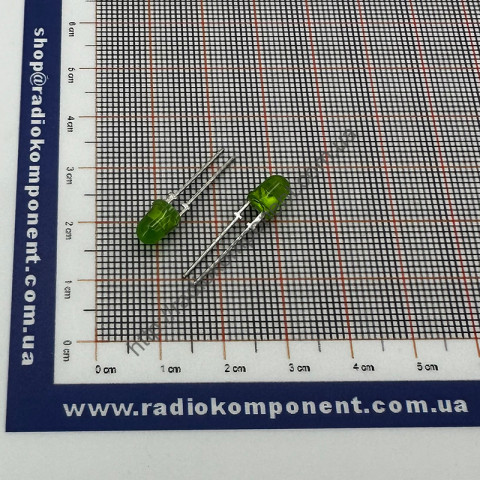

LED AL307NM
| Manufacturer | СНГ |
| SKU | |
| Categories | LEDs |
Features
| Type | Description | |
|---|---|---|
| LED purpose | Indication | |
| LED type | 5mm round | |
| Color | Green | |
| Brand name | СНГ | |
| Weight g. | 0.3 | |
| Factory packaging | 1000pcs | |
| Mounting type | DIP |
Description
Main technical parameters of the AL307NM LED:
• Color of radiation (glow): green;
• Luminous intensity: not less than 6 cd/m2;
• DC forward voltage: no more than 2 V;
• Maximum spectral distribution: 0.567 µm;
• Maximum allowable direct forward current: 22 mA;
• Maximum pulse current at a given pulse duration: 60 mA;
• The maximum allowable reverse DC voltage: 2.8 V;
• Maximum permissible pulsed reverse DC voltage: 2.8 V.
