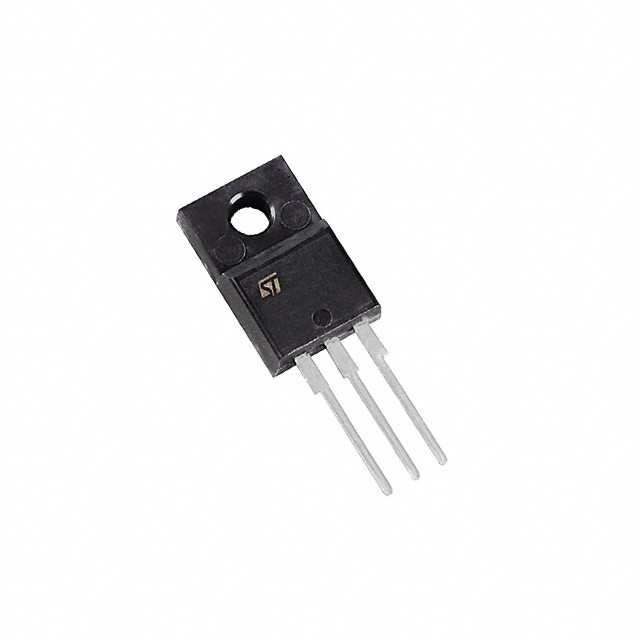

STP6NK90ZFP

MOSFET, N, TO-220FP
Transistor Type:MOSFET
Transistor Polarity:N
Typ Voltage Vds:900V
Cont Current Id:5.8A
On State Resistance:2ohm
Voltage Vgs Rds on Measurement:10V
Typ Voltage Vgs th:3.75V
Case Style:TO-220FP
Termination Type:Through Hole
Avalanche Single Pulse Energy Eas:300mJ
Current Iar:5.8A
Max Voltage Vds:900V
Max Voltage Vgs:30V
Max Voltage Vgs th:4.5V
Min Voltage Vgs th:3V
On State resistance @ Vgs = 10V:2ohm
Power Dissipation:30W
Power Dissipation Pd:30W
Pulse Current Idm:23.2A
Rds Measurement Voltage:10V
Typ Capacitance Ciss:1350pF
Voltage Vds:900V
Transistor Case Style:TO-220FP
