STP6NK90ZFP
| Короткий опис | <p>Корпус: TO-220FP<br />Uds,V: 900<br />Idd,A: 5,8<br />Rds(on), Ohm: 1.56<br />Ciss, pF/Qg, nC: 1350/17</p> |
| Категорії | Транзистори імпортні |
Характеристики
Опис

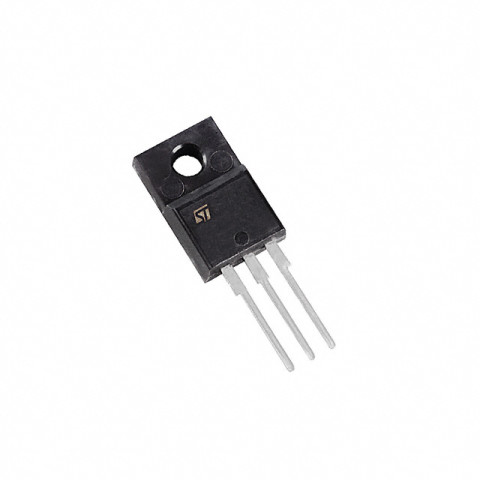

MOSFET, N, TO-220FP
Transistor Type:MOSFET
Transistor Polarity:N
Typ Voltage Vds:900V
Cont Current Id:5.8A
On State Resistance:2ohm
Voltage Vgs Rds on Measurement:10V
Typ Voltage Vgs th:3.75V
Case Style:TO-220FP
Termination Type:Through Hole
Avalanche Single Pulse Energy Eas: 300mJ
Current Iar:5.8A
Max Voltage Vds: 900V
Max Voltage Vgs: 30V
Max Voltage Vgs th:4.5V
Min Voltage Vgs th:3V
On State resistance @ Vgs = 10V:2ohm
Power Dissipation:30W
Power Dissipation Pd: 30W
Pulse Current Idm:23.2A
Rds Measurement Voltage: 10V
Typ Capacitance Ciss:1350pF
Voltage Vds:900V
Transistor Case Style:TO-220FP
