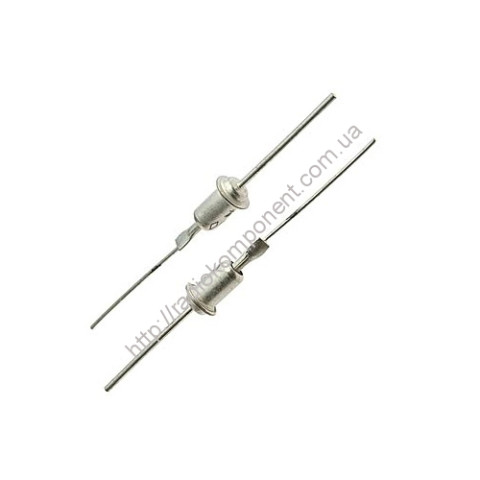

Zener diode KS447A
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic zener diodes |
Features
| Type | Description | |
|---|---|---|
| Mounting type | DIP | |
| Brand name | СНГ | |
| Weight g. | 0.8 | |
| Factory packaging | 200pcs | |
| Stabilization voltage | 4V7 | |
| Zener diode housing type | kd-8 | |
| Power | 1Вт |
Description
The main technical parameters of the KS447A zener diode:
• Rated stabilization voltage: 4.7 V at Ist 43 mA;
• Stabilization voltage spread: 4.23... 5.17 V;
• Temperature coefficient of stabilization voltage: -0.08...+0.03%/°C;
• Temporary instability of the stabilization voltage of the zener diode: ±1.5%;
• Zener diode differential resistance: 18 Ohm at Ist 30 mA;
• Minimum allowable stabilization current: 3 mA;
• Maximum allowable stabilization current: 159 mA;
• Maximum allowable dissipated power on the zener diode: 1 W;
• Ambient temperature operating range: -60... +100 °С
