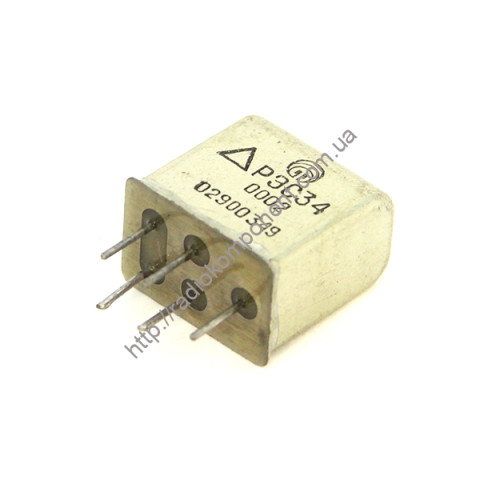

Relay RES34 RS4.524.370-00.02

Relay RES-34 RS4.524.370-00.02 hermetic, two-position, single-stable, with one changeover contact, powered by direct current, designed for switching electric circuits of direct and alternating current.
Technical characteristics of the relay RES-34 RS4.524.370-00.01:
• Winding supply current ...... constant
• Winding resistance, Ohm ...... 3360-5040
• Operate current, mA ...... 8
• Release current, mA ...... 1.2
• Operating current, mA ...... 9.5-10.5
• Insulation resistance between current-carrying elements, between current-carrying elements and case, MOhm, not less than:
- in normal climatic conditions (winding de-energized) ...... 200
- at maximum temperature (after holding the winding under operating voltage) ...... 20
- in conditions of high humidity: between contacts, between contacts and housing, between winding and housing, between winding and contacts ...... 10
• Test alternating voltage between current-carrying elements, between current-carrying elements and the case, V:
- in normal climatic conditions ...... 500
- in conditions of high humidity ...... 300
- at reduced atmospheric pressure ...... 170.
