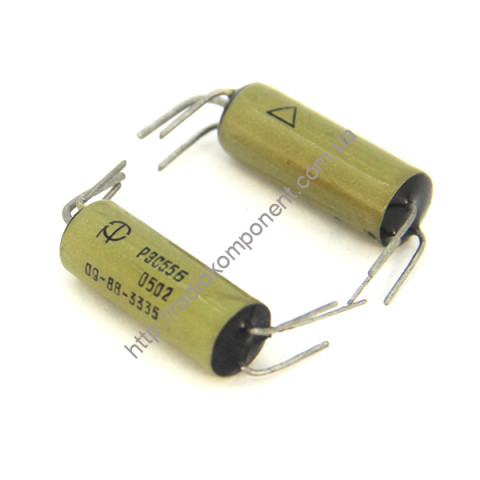

Relay RES55B RS4.569.625-05.02

RES-55B RS4.569.625-05.02
Dust-splash-proof, reed, two-position, single-stable DC relays are designed for switching DC and AC electrical circuits with a frequency of up to 10 kHz.
Technical characteristics of the relay RES-55B RS4.569.625-05.02:
• Winding resistance, Ohm ...... 1600-2162;
• Operation voltage, V ...... 14.2;
• Release voltage, V ...... 1.6;
• Operating voltage, V ...... 24.3-29.7;
• Insulation resistance between current-carrying elements, current-carrying elements and screen:
- in normal climatic conditions not less than ...... 500 MOhm;
- in conditions of high humidity not less than ...... 5 MOhm;
- at a maximum temperature of at least ...... 20 MΩ;
• Dielectric strength of insulation:
- between current-carrying elements, current-carrying elements and screen ...... 500 V;
- between the terminals of the contacts ...... 200 V;
• Electrical capacity:
- between contacts 1 and 2 no more ...... 5 pF;
- between contacts 2 and 3 no more ...... 2 pF;
- between the winding and contact 1 no more ...... 4 pF;
- between the winding and contact 3 no more ...... 3 pF;
- between the screen and contact 1 no more ...... 5 pF;
- between the screen and contact 3 no more ...... 4 pF;
- between the screen and the winding no more ...... 85 pF;
• Duty cycle at least ...... 5 ms;.
