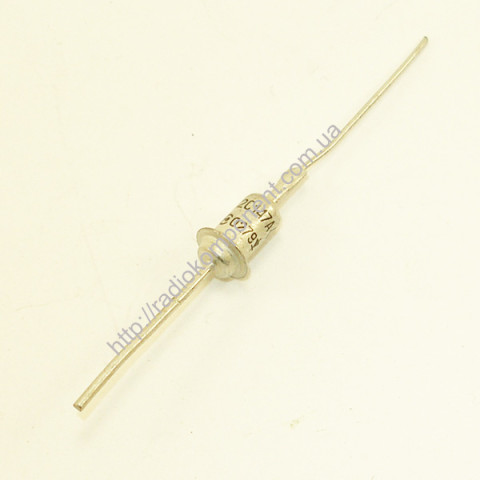

Zener diode 2S147A (=KS147A)
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic zener diodes |
Features
| Type | Description | |
|---|---|---|
| Mounting type | DIP | |
| Brand name | СНГ | |
| Weight g. | 0.8 | |
| Factory packaging | 100 pieces. | |
| Stabilization voltage | 4V7 | |
| Zener diode housing type | kd-4 | |
| Power | 300мВт |
Description
The main technical parameters of the zener diode 2S147A:
• Rated stabilization voltage: 4.7 V at Ist 10 mA;
• Stabilization voltage spread: 4.23... 5.17 V;
• Temperature coefficient of stabilization voltage: -0.09%/°С;
• Constant forward voltage: 1 V at Ipr 50 mA;
• Zener diode differential resistance: 56 Ohm at Ist 10 mA;
• Minimum allowable stabilization current: 3 mA;
• Maximum allowable stabilization current: 58 mA;
• Maximum allowable dissipated power on the Zener diode: 0.3 W;
• Working range of ambient temperature: -60... +125 °С.
