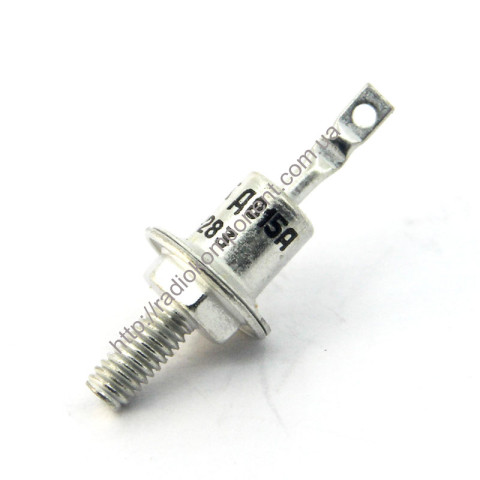

Zener diode D815A
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic zener diodes |
Features
| Type | Description | |
|---|---|---|
| Mounting type | Screw | |
| Brand name | СНГ | |
| Weight g. | 2.5 | |
| Factory packaging | 100 pieces. | |
| Stabilization voltage | 5V6 | |
| Zener diode housing type | ks620 | |
| Power | 8Вт |
Description
Medium power silicon zener diode, 5.6V
The main technical parameters of the Zener diode D815A:
• Stabilization voltage spread: 5... 6.2 V at Ist 1 A;
• Temperature coefficient of stabilization voltage: 0.045%/°С;
• Temporary stabilization voltage instability: ± 4%;
• Constant forward voltage: 1.5 V at Ipr 500 mA;
• Zener diode differential resistance: 0.6 Ohm;
• Minimum allowable stabilization current: 50 mA;
• Maximum allowable stabilization current: 1.4 A;
• Maximum allowable power dissipation on the zener diode: 8 W;
• Ambient temperature operating range: -60... +125 °С
