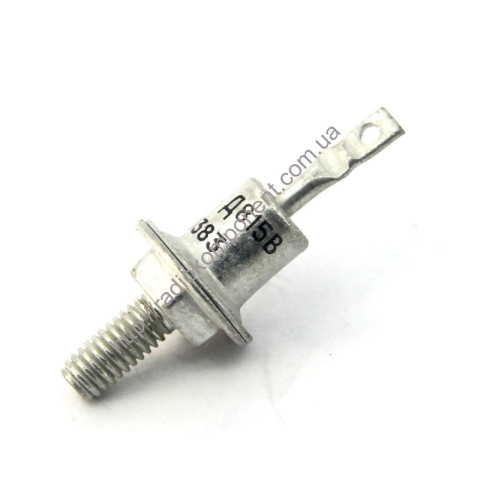

Zener diode D815V
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic zener diodes |
Features
| Type | Description | |
|---|---|---|
| Mounting type | Screw | |
| Brand name | СНГ | |
| Weight g. | 2.5 | |
| Factory packaging | 100 pieces. | |
| Stabilization voltage | 8V2 | |
| Zener diode housing type | ks620 | |
| Power | 8Вт |
Description
Medium power silicon zener diode, 8.2V
The main technical parameters of the Zener diode D815V:
• Stabilization voltage spread: 7.4... 9.1 V at Ist 1 A;
• Temperature coefficient of stabilization voltage: 0.07%/°С;
• Temporary stabilization voltage instability: ± 4%;
• Constant forward voltage: 1.5 V at Ipr 500 mA;
• Zener diode differential resistance: 1 ohm;
• Minimum allowable stabilization current: 50 mA;
• Maximum allowable stabilization current: 950 mA;
• Maximum allowable power dissipation on the zener diode: 8 W;
• Ambient temperature operating range: -60... +125 °С
