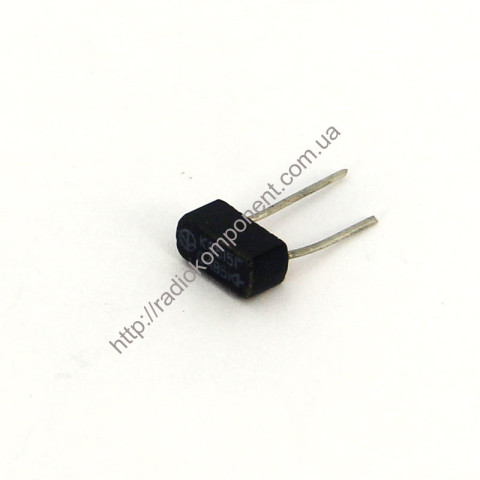

Zener diode KS515G
| Manufacturer | СНГ |
| SKU | |
| Categories | Domestic zener diodes |
Features
| Type | Description | |
|---|---|---|
| Mounting type | DIP | |
| Brand name | СНГ | |
| Weight g. | 0.6 | |
| Factory packaging | 50pcs | |
| Stabilization voltage | 15V | |
| Power | 500мВт |
Description
Zener diodes KS515G silicon, diffusion-alloy, medium power, precision.
Designed to stabilize the nominal voltage of 15 V in the stabilization current range of 3 to 31 mA with high requirements for voltage stability in the temperature range of -60...+100 °C.
The main technical parameters of the KS515G zener diode:
• Rated stabilization voltage: 15 V at Ist 10 mA;
• Stabilization voltage spread: 14.25... 15.75 V;
• Temperature coefficient of stabilization voltage: 0.005%/°С;
• Temporary instability of the stabilization voltage of the zener diode: ±1.5%;
• Zener diode differential resistance: 25 Ohm at Ist 10 mA;
• Minimum allowable stabilization current: 3 mA;
• Maximum allowable stabilization current: 31 mA;
• Maximum allowable power dissipation on the zener diode: 0.5 W;
• Working range of ambient temperature: -60... +100 °С.
