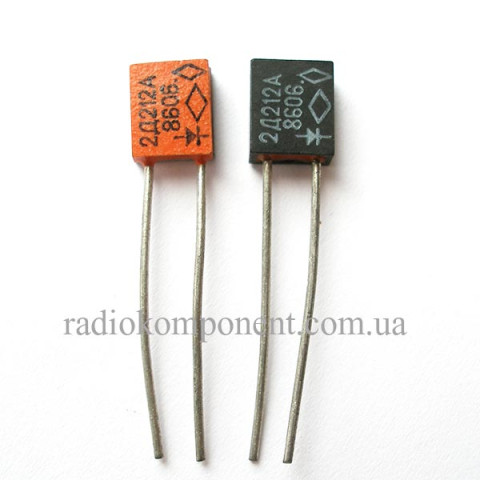

Diode 2D212A (=KD212A)
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-16 | |
| Diode type | Rectifier | |
| Urev. max, V | 200V | |
| Ipr. max. | 1A | |
| Brand name | СНГ | |
| Weight g. | 1.5 | |
| Factory packaging | 200pcs |
Description
• Uopp max - Maximum direct reverse voltage: 200 V;
• Inp max - Maximum forward current: 1 A;
• fd - Operating frequency of the diode: 100 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 1 A;
• Iobr - Constant reverse current: no more than 50 μA at Uobr 200 V;
• tvoc arr - Reverse recovery time: 0.3 µs;
• Sd - Total capacitance: 45 pF at Uobr 100 V
