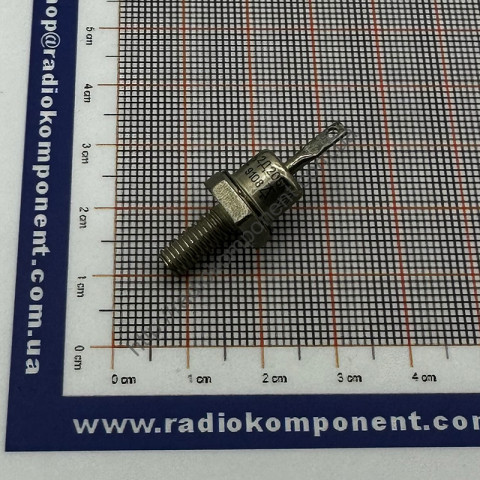

Diode 2D206A
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-11 | |
| Diode type | Rectifier | |
| Urev. max, V | 400V | |
| Ipr. max. | 5A | |
| Brand name | СНГ | |
| Mounting type | Screw | |
| Weight g. | 5.7 | |
| Factory packaging | 100 pieces. |
Description
The main technical characteristics of the diode 2D206A:
• Uopp max - Maximum direct reverse voltage: 400 V;
• Inp max - Maximum forward current: 5 A;
• fd - Operating frequency of the diode: 1 kHz;
• Unp - DC forward voltage: no more than 1.2 V at Inp 1000 mA;
• Iobr - DC reverse current: no more than 700 µA at Uobr 400 V;
• tvoc - Reverse recovery time: 10 µs.
