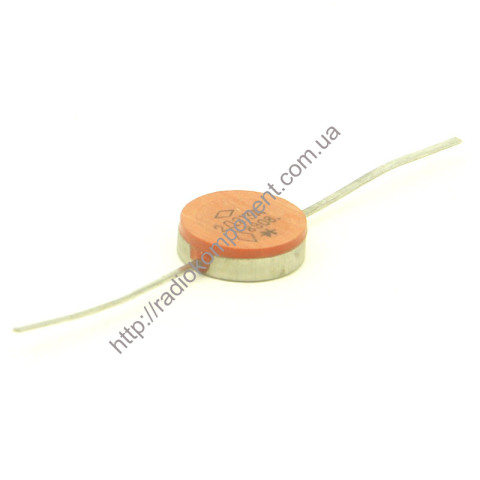

Diode 2D213A (=KD213A)
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-23 | |
| Diode type | Rectifier | |
| Urev. max, V | 200V | |
| Ipr. max. | 10A | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 3.5 | |
| Factory packaging | 50pcs |
Description
The main technical characteristics of the diode 2D213A:
• Uopp max - Maximum direct reverse voltage: 200 V;
• Inp max - Maximum forward current: 10 A;
• fd - Operating frequency of the diode: 100 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 10 A;
• Iobr - Constant reverse current: no more than 200 µA at Uobr 200 V;
• tvoc arr - Reverse recovery time: 0.3 µs;
• Sd - Total capacitance: 550 pF at Uobr 100 V.
Customers who bought Diode 2D213A (=KD213A) also bought
| Name | Article | Brand | In stock | Price | Quantity | |
|---|---|---|---|---|---|---|
|
Resistor (+/-5%) 0.125W 20 kOhm mini size | 10101 | — | 494 шт | 0.50 грн. | |
|
Resistor (+/-5%) 0.125W 330 kOhm mini size | 10130 | — | 763 шт | 0.50 грн. | |
|
Diode KD213A | 22967 | — | 65 шт | 25 грн. | |
|
Disc capacitor 47pF(2000V) | 24870 | — | 14 шт | 1 грн. | |
|
Microcircuit KR1114EU4 b/mark. (=TL494) | 22323 | — | 467 шт | 8 грн. | |
|
Optocoupler AOD133A | 21277 | — | 15276 шт | 12 грн. | |
|

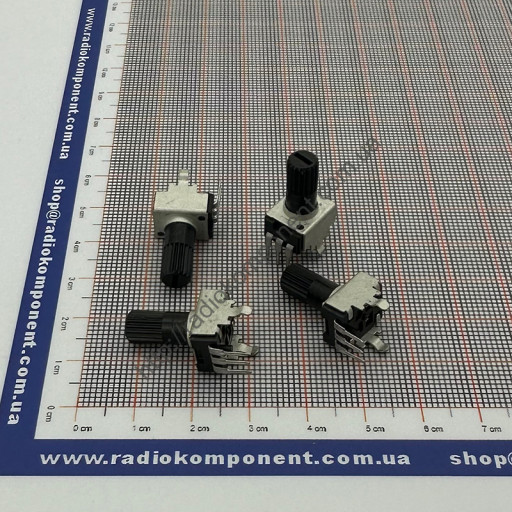

Variable resistor R0902N 30 KΩ 3pin vertical | 22758 | — | 65 шт | 10 грн. | |
|
