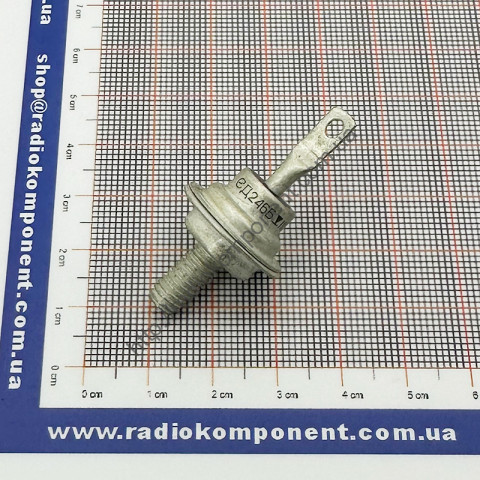

Diode D246B
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Diode type | Rectifier | |
| Urev. max, V | 400V | |
| Ipr. max. | 5A | |
| Brand name | СНГ | |
| Mounting type | Screw | |
| Weight g. | 13 | |
| Factory packaging | 40pcs |
Description
Diodes D246B silicon, diffusion.
Designed to convert alternating voltage with a frequency of up to 1.1 kHz.
The main technical characteristics of the diode D246B:
• Uopp max - Maximum direct reverse voltage: 400 V;
• Inp max - Maximum forward current: 5 A;
• fd - Operating frequency of the diode: 1.1 kHz;
• Unp - DC forward voltage: no more than 1.5 V at Inp 5 A;
• Iobr - Constant reverse current: no more than 3000 µA at Uobr 400 V.
