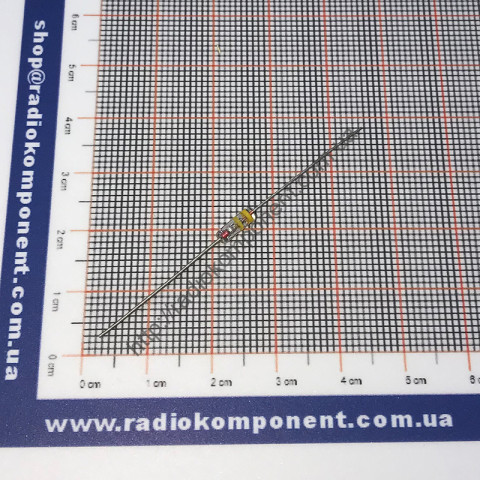

Diode D9I
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Diode type | Detector | |
| Urev. max, V | 100V | |
| Ipr. max. | 30mA | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 0.3 | |
| Factory packaging | 200pcs |
Description
The main technical characteristics of the D9I diode:
• Uopp max - Maximum direct reverse voltage: 100 V;
• Inp max - Maximum forward current: 30 mA;
• fd - Operating frequency of the diode: 100 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 30 mA;
• Iobr - Constant reverse current: no more than 120 µA at Uobr 100 V.
