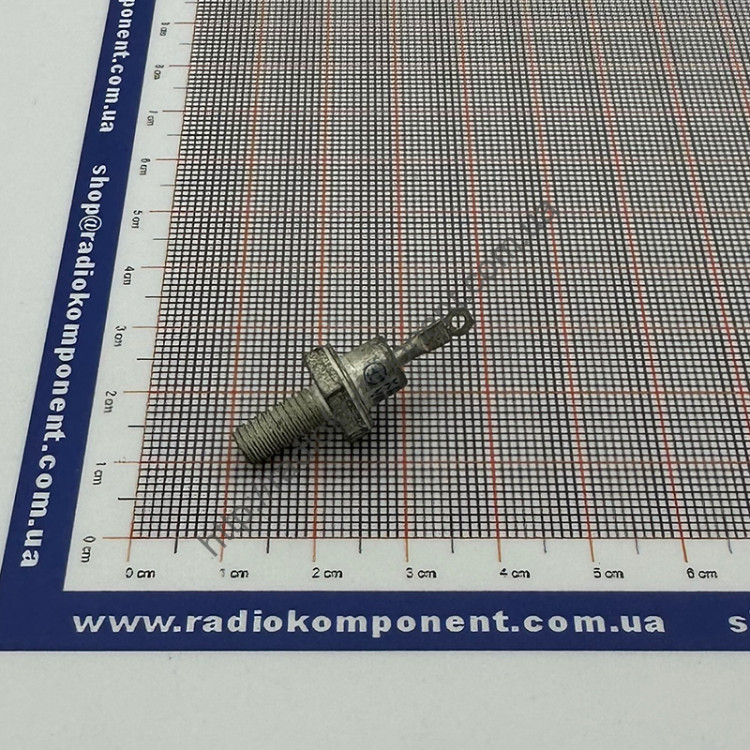

Diode KD204V
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-11 | |
| Diode type | Rectifier | |
| Urev. max, V | 50V | |
| Ipr. max. | 1A | |
| Brand name | СНГ | |
| Mounting type | Screw | |
| Weight g. | 5 | |
| Factory packaging | 50pcs |
Description
Main technical characteristics of the KD204V diode:
• Uop and max - Maximum pulse reverse voltage: 50 V;
• Inp max - Maximum forward current: 1000 mA;
• fd - Diode operating frequency: 1 kHz;
• Unp - Continuous forward voltage: no more than 1.4 V at Inp 600 mA;
• Iop - Continuous reverse current: no more than 50 µA at Uop 50 V;
• treverse - Reverse recovery time: 1.5 µs.
