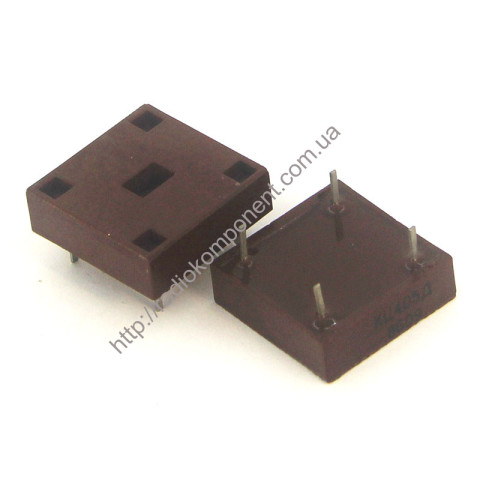

Diode bridge KTS405D
| Manufacturer | СНГ |
| SKU | |
| Categories | Diode bridges domestic |
Features
| Type | Description | |
|---|---|---|
| Diode type | Diode bridge | |
| Urev. max, V | 200V | |
| Ipr. max. | 1A | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 5.2 | |
| Factory packaging | 500pcs |
Description
The main technical characteristics of the KTs405D diode:
• Uopp max - Maximum direct reverse voltage: 200 V;
• Inp max - Maximum forward current: 1000 mA;
• fd - Operating frequency of the diode: 5 kHz;
• Unp - DC forward voltage: no more than 4 V at Inp 1000 mA;
• Iobr - Constant reverse current: no more than 125 µA at Uobr 200 V.
