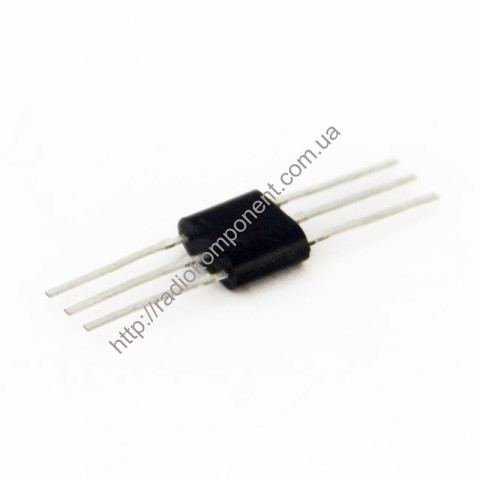

Diode bridge KTS407A
| Manufacturer | СНГ |
| SKU | |
| Categories | Diode bridges domestic |
Features
| Type | Description | |
|---|---|---|
| Diode type | Diode bridge | |
| Urev. max, V | 400V | |
| Ipr. max. | 500mA | |
| Ipr. imp. max. | 3A | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 0.5 | |
| Factory packaging | 500pcs |
Description
KTS407A
A block of silicon, mesadiffusion diodes connected in a bridge circuit.
Available in a plastic case with flexible leads.
The main technical characteristics of the diode KTS407A:
• Uobr and max - Maximum impulse reverse voltage: 400 V;
• Inp max - Maximum forward current: 500 mA;
• Inp and max - Maximum pulse forward current: 3 A;
• fd - Operating frequency of the diode: 20 kHz;
• Iobr - Constant reverse current: no more than 5 μA at Uobr 400 V;
• tvoc - Reverse recovery time: 5 µs.
