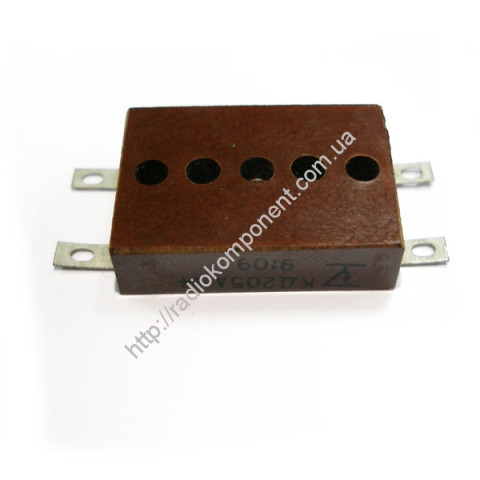

Diode Assembly KD205A
| Manufacturer | СНГ |
| SKU | |
| Categories | Diode bridges domestic |
Features
| Type | Description | |
|---|---|---|
| Diode type | Rectifier | |
| Urev. max, V | 500V | |
| Ipr. max. | 500mA | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 4 | |
| Factory packaging | 100 pieces. |
Description
Diode assembly, consisting of two silicon, diffusion diodes, with separate outputs.
Main technical characteristics of KD205A:
• Uopp max - Maximum direct reverse voltage: 500 V;
• Inp max - Maximum forward current: 500 mA;
• fd - Operating frequency of the diode: 5 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 500 mA;
• Iobr - Constant reverse current: no more than 100 μA at Uobr 500 V
