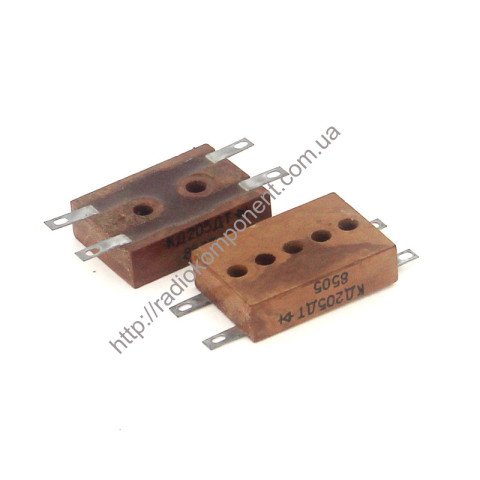

Diode assembly KD205DT
| Manufacturer | СНГ |
| SKU | |
| Categories | Diode bridges domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | assembly | |
| Diode type | Rectifier | |
| Urev. max, V | 100V | |
| Ipr. max. | 500mA | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 5.7 | |
| Factory packaging | 100 pieces. |
Description
Diode assemblies KD205DT, each consisting of two silicon diffusion diodes, with separate leads.
Designed to convert alternating voltage with a frequency of up to 5 kHz in power supply units of radio-electronic equipment.
The main technical characteristics of the KD205DT diode:
• Uopp max - Maximum direct reverse voltage: 100 V;
• Inp max - Maximum forward current: 500 mA;
• fd - Operating frequency of the diode: 5 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 500 mA;
• Iobr - Constant reverse current: no more than 100 μA at Uobr 100 V
