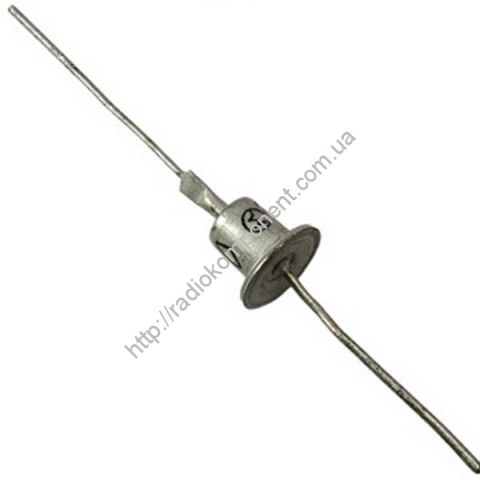

Diode MD218
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-9 | |
| Diode type | Rectifier | |
| Urev. max, V | 1000V | |
| Ipr. max. | 100mA | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 1 | |
| Factory packaging | 100 pieces. |
Description
• Uopp max - Maximum direct reverse voltage: 1000 V;
• Inp max - Maximum forward current: 100 mA;
• fd - Operating frequency of the diode: 1 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 100 mA;
• Iobr - Constant reverse current: no more than 50 μA at Uobr 1000 V
