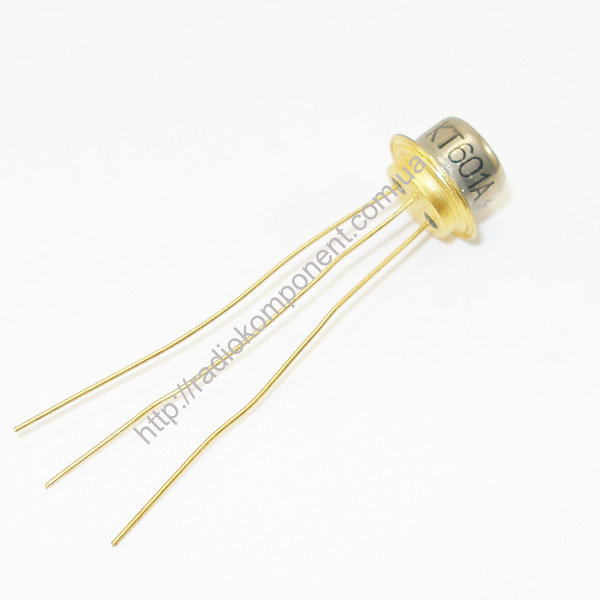

Transistor KT601A Au

  • Transistor KT601A Au
Vendor code: 24655
not in stock
45 грн.
Сообщить о поступлении
Доступные скидки
Название Скидка Скидка, % Цена
10+ 2.25 грн. 5 42.75 грн.
50+ 4.50 грн. 10 40.50 грн.
100+ 9 грн. 20 36 грн.

The main technical characteristics of the transistor KT601A:
• Transistor structure: npn;
• Рк max - Constant power dissipation of the collector: 0.25 W;
• fgr - Limiting frequency of the current transfer coefficient of the transistor for a circuit with a common emitter: not less than 40 MHz;
• Uкеr max - Maximum collector-emitter voltage at a given collector current and a given (final) resistance in the base-emitter circuit: 100 V;
• Uebo max - Maximum emitter-base voltage at a given emitter reverse current and collector open circuit: 2 V;
• Ik max - Maximum allowable DC collector current: 30 mA;
• h21e - Static current transfer coefficient of the transistor for circuits with a common emitter: more than 16;
• Sk - Collector junction capacitance: no more than 15 pF;
• tk - Time constant of the feedback circuit at high frequency: no more than 600 ps.

Brand nameСНГ
StructureNPN
Transistor typeБиполярный
Power500мВт
Transistor case typeКТЮ-3-6
Mounting typeDIP
Weight g.2
Factory packaging100шт.
Collector-emitter voltage100В
Collector current30мА
Current gain25
Frequency40МГц
