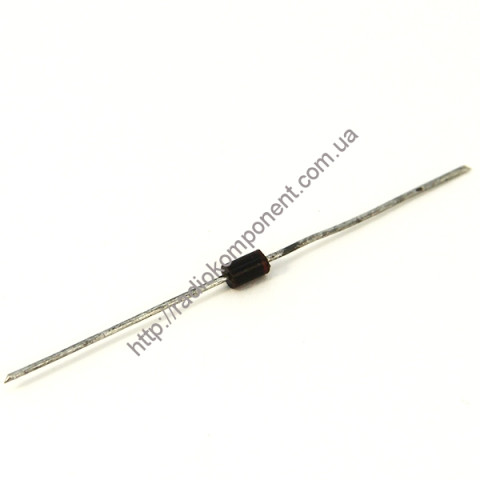

Diode KD243B
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-4 | |
| Diode type | Rectifier | |
| Urev. max, V | 100V | |
| Ipr. max. | 1A | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 0.4 | |
| Factory packaging | 1000pcs |
Description
Diodes KD243B silicon, diffusion, rectifier.
Are intended for transformation of alternating voltage with a frequency up to 70 kHz.
The main technical characteristics of the KD243B diode:
• Uopp max - Maximum direct reverse voltage: 100 V;
• Inp max - Maximum forward current: 1 A;
• Inp and max - Maximum pulse forward current: 6 A;
• fd - Operating frequency of the diode: 1 kHz;
• Unp - DC forward voltage: no more than 1.1 V at Inp 1 A;
• Iobr - Constant reverse current: no more than 10 μA at Uobr 100 V.
