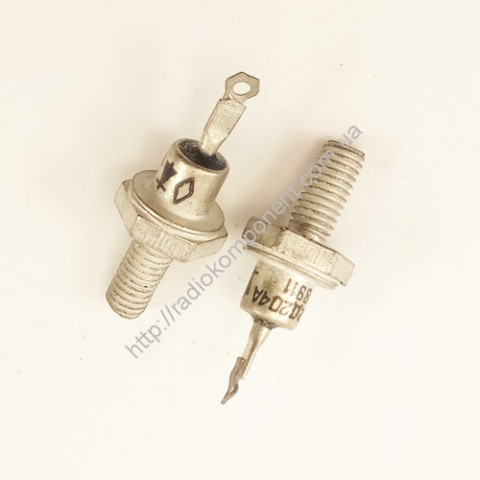

Diode 2D204A (=KD204A)
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-11 | |
| Diode type | Rectifier | |
| Urev. max, V | 400V | |
| Ipr. max. | 400mA | |
| Brand name | СНГ | |
| Mounting type | Screw | |
| Weight g. | 5 | |
| Factory packaging | 50pcs |
Description
Designed to convert alternating voltage with a frequency of up to 50 kHz.
The main technical characteristics of the diode 2D204A:
• Uobr and max - Maximum impulse reverse voltage: 400 V;
• Inp max - Maximum forward current: 400 mA;
• fd - Operating frequency of the diode: 1 kHz;
• Unp - DC forward voltage: no more than 1.4 V at Inp 600 mA;
• Iobr - DC reverse current: no more than 150 µA at Uobr 400 V;
• tvoc - Reverse recovery time: 1.5 µs
