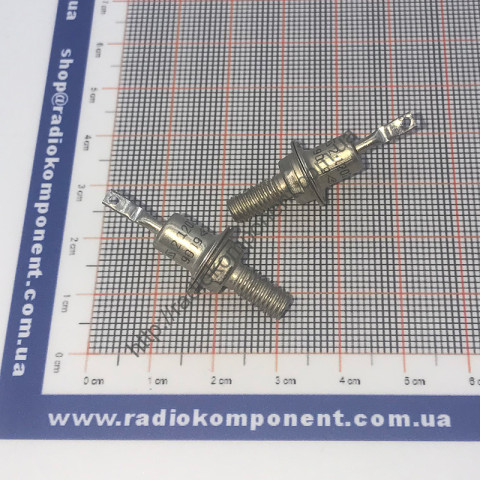

Diode 2D202R (=KD202R)

Diodes 2D202R silicon, diffusion.

Designed to convert alternating voltage with a frequency of up to 5 kHz.

Are issued in the glass-to-metal case with rigid conclusions.

The type of the diode and the connection diagram of the electrodes with the leads are given on the case.

Diode weight no more than 5.2 g, with accessories no more than 7 g.

Hull type: KDYu-11-2.

Specifications: UZh3.362.035 TU.

The main technical characteristics of the diode 2D202R:

• Uobr and max - Maximum impulse reverse voltage: 600 V;

• Inp max - Maximum forward current: 5 A;

• fd - Operating frequency of the diode: 1.2 kHz;

• Unp - DC forward voltage: no more than 0.9 V at Inp 5 A;

• Iobr - Constant reverse current: no more than 800 μA at Uobr 600 V
