ARDUINO
Filter layout:
|
| MPN | Article | Brand | In stock | Price | Discounts | Quantity | Description | Weight g. | Mounting type | Factory packaging | Device type |
|---|
| 25595 | CHINA | — |
19 грн.
|
— | The laser module is an LED with a cylindrical copper heatsink for cooling, which is used as the emitted component. The module can be used both in a security system using an outgoing beam as an obstacle, upon crossing which an alarm is triggered, and in domestic projects. The module board is designed based on the KY-008 laser diode and auxiliary passive elements, to ensure the stable operation of the laser. The advantages of the module are: consumption of 30 mA of current and the ability to consume power directly from the Arduino board. The module generates red radiation in the range of 650 nm with a constant power of 2 - 5 mW. The light spot of the laser can extend to a distance of up to 14 meters. The radiation intensity of the KY-008 laser module is controlled by current. When the threshold value of the passing current is exceeded, the intensity of the radiation of the laser LED increases sharply, respectively, at low currents, the laser emits like a conventional LED. The module is connected using a common I2C serial interface that works in conjunction with the Arduino Uno or other microcontrollers. Power is connected to the module from contacts +5V and GND. You can supply power to the module from an external power source or from the ports of the Arduino Uno. The S output serves as a contact for transmitting control signals to the microcontroller. When working with the module, you must be careful not to direct it into the eyes, in addition, during long work, the laser heats up very much, especially at high intensity of the passing current. Technical parameters of the module: Supply voltage, V 5 Current consumption, mA 30 Output power, mW 2 ... 5 Wavelength, nm 650 Emission color red Laser diameter, mm 6 Module operating temperature, °C -10 ... +40 Module size, mm 15 x 24 x 9 Laser module connection diagram: | 2.8 | — | — | Light, sound | |||

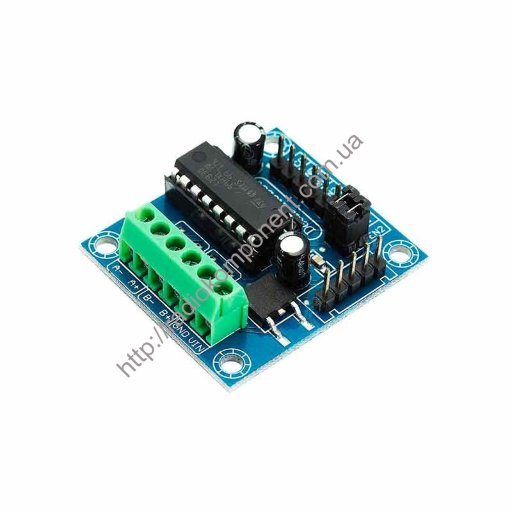

Mini L293D motor driver
#14034
|
26213 | CHINA | — |
58 грн.
|
— | The module on the L293D driver chip is designed to control small power stepper and collector motors. The module is made in a compact design and contains all the necessary components and control signals for the full control of an inductive load. The most popular applications of the module are self-propelled and radio-controlled toys, watering systems, control of solenoids, electromagnetic motors, etc. The logic part can be powered either from the input voltage of the power part (VIN) or from a separate 5V power supply (VCC). When the module is powered from an external source (7-20V), you can use the internal 5V regulator of the module to power the Arduino control microcontroller. The module also has a 5-pin connector for connecting a 28BYJ-48 stepper motor. Specifications: Logic supply voltage: 4.5V to 7V Power section voltage: 4.5 to 25 V Maximum output current: 600mA Peak current: 1.2A Number of channels: 4 half bridges Maximum logic "0" voltage: 1.5 V Maximum switching frequency: 5 kHz The maximum current of the built-in stabilizer: 500 mA Overall dimensions: 35x35x10 mm. | 12 | — | — | Motor control | ||
| 25604 | CHINA | — |
105 грн.
|
— | The Basic Learning Kit is a multifunctional expansion board that is designed for beginners learning the Arduino platform, but can also be used to create various projects that require a large variety of sensors and modules. Almost all additional Arduino modules can be connected to this board. The following components are located on the expansion board: 4 LEDs, a seven-segment four-digit display, an active buzzer, a trimmer resistor, 4 buttons (one of them is for resetting the Arduino board system, and the remaining three can be used to navigate through the device menu, change the threshold value, activate sensors etc.). An active buzzer is designed to reproduce sound signals. The buzzer is active as there is a built-in generator in its case. When current is applied to the buzzer, its relay coil excites a magnetic field. Under the action of a magnetic field, the relay contacts open. After opening the contacts, the current in the circuit disappears and the magnetic field disappears, after which the springs return to their original position. The process is then repeated as long as current is applied to the circuit. Due to the vibrations of the armature, air vibrations appear, which reproduce the sound of the buzzer. An active buzzer can be used as a siren to notify you of any activity. The 10 kΩ trimmer is a passive electronic component for fine tuning device parameters. With this resistor, you can change the volume of the buzzer, the sensitivity of the sensors, the brightness of the LEDs, LED display, etc. Also on the expansion board there are contacts for connecting additional external modules and sensors. The Bluetooth module, the APC220 radio module and the SYN6288 speech synthesis module are connected to the contacts located near the seven-segment indicator. Pin assignments: SET: module setting AUX: module mode TXD: signal receiving line RXD: signal transmission line EN: enable VCC: supply voltage GND: ground An IR sensor is connected to U4, and an LM35 (analog) or DS18B20 (digital) temperature sensor is connected to U5. Pin assignments: VCC: sensor supply voltage VOUT: data line GND: ground The following components can be connected to the pin terminals: DHT11 and DHT22 humidity and temperature sensors, SG90 and MG90S servo drives, etc. GND: ground VCC: supply voltage VOUT: data line The connected sensors and modules correspond to the following pins on the expansion board: D2: IR (infrared sensor) D3: sound emitter D5, D6, D9: external sensors D10 - D13: LEDs A0: trimmer A1 - A3: tact buttons A4: LM35 and DS18B20 temperature sensors A5: analog sensors The circuit is easy to use and minimizes the risk of failure of the elements if they are connected incorrectly. There are also 2 jumpers (J1 and J2) on the expansion board. When connecting an analog LM35 sensor, jumper J1 is removed, and when connecting a digital sensor DS18B20, both jumpers remain in place. The Arduino IDE has some necessary libraries that are needed for the sensors to work properly. The module is powered by an Arduino board or other microcontroller device. The supply voltage range is 3.3 to 5 V. Module Specifications: Supply voltage, V 3.3 / 5 Speech synthesis SYN6288 APC220 radio module Temperature sensor LM35 /DS18B20 Module dimensions, mm 69 x 53.5 | 25 | — | — | Arduino expansion modules | |||
| 25566 | CHINA | — |
21 грн.
|
— | Single channel 12V relay module for Arduino is used to control various devices with high power consumption. To use a relay module, you must connect a controlled device to it. Then you need to connect 12V power supply to the VCC and GND terminals of the module. A microcontroller, computer or other control device is connected to the IN control terminal of the relay module. The relay module has two interfaces - for connecting a control device (microcontroller, computer) and for connecting controlled devices to the relay: A 3-pin interface is used to connect the relay module to the control device. Contacts GND and VCC for connecting +12V, output IN for connecting a control signal. To connect controlled devices to the relay, there are 3 clamp contacts on the board. Designation of contacts NC, COM, NO (normally closed, common, normally open contact, respectively). Module Specifications: Operating current, mA 15 ... 20 Control voltage, V 12 Relay JQC-3FF-SZ Module size, mm 47 x 18 x 20. | 12 | — | — | Relay/Switching Modules | |||
| 25625 | CHINA | — |
35 грн.
|
— | The 1-channel 12V relay module requires only 10mA to operate, and with the JD-VCC jumper removed and 5V applied to the optocoupler supply, can be driven directly from the Arduino microcontroller pins. Turned on by a logical zero, turned off by a logical one. Specifications: The maximum switching current of the relay is 10A at a voltage of 250 V There is an LED signaling the current state of the relay contacts. | 17.5 | — | — | Relay/Switching Modules | |||
| 25626 | CHINA | — |
35 грн.
|
— | The 1-channel 24V relay module, requires only 10mA to operate, and with the JD-VCC jumper removed and 5V applied to the optocoupler supply, can be driven directly from the Arduino microcontroller pins. Turned on by a logical zero, turned off by a logical one. Specifications: The maximum switching current of the relay is 10A at a voltage of 250 V There is an LED signaling the current state of the relay contacts. | 17.5 | — | — | Relay/Switching Modules | |||
| 25561 | CHINA | — |
22 грн.
|
— | The single channel 5V relay module for Arduino is used to control various devices with large power consumption. To use a relay module, you must connect a controlled device to it. Then you need to connect 5V power supply to the VCC and GND terminals of the module. A microcontroller, computer or other control device is connected to the IN control terminal of the relay module. The relay module has two interfaces - for connecting a control device (microcontroller, computer) and for connecting controlled devices to the relay: A 3-pin interface is used to connect the relay module to the control device. GND and VCC pins for +5V connection, IN pin for control signal connection. To connect controlled devices to the relay, there are 3 clamp contacts on the board. Designation of contacts NC, COM, NO (normally closed, common, normally open contact, respectively). Module Specifications: Operating current, mA 10 Control voltage, V 5 Relay SRD-5VDC-SL-C Module size, mm 47 x 18 x 20. | 13 | — | — | Relay/Switching Modules | |||
| 25615 | CHINA | — |
30 грн.
|
— | The five-volt single-channel relay module with optical isolation is designed to control a power load using Arduino or other controllers. To use the relay module, you need to connect a controlled device to it. Then you need to connect 5V power to the VCC and GND pins of the module. Then you need to connect a microcontroller, computer or other control device to the IN control terminals of the relay module and start working. The relay module has two interfaces - for connecting the control microcontroller and for connecting controlled devices to the relay. A 3-pin terminal block is used to connect the relay module to the control device. Contacts GND and VCC for connecting the supply voltage 5V, output IN for connecting the control signal. To connect the load to the relay, there is a 3-pin terminal block on the board. The relay module can be powered both from the control controller and from external power sources. A jumper can be used to select the level to be controlled high/low. Technical parameters of the module: Supply voltage, V 5 Relay operating current, mA 15 ... 20 Relay JQC-3FF-SZ Module dimensions, mm 50 x 26 x 18 | 17.5 | — | — | Relay/Switching Modules | |||
| 25627 | CHINA | — |
46 грн.
|
— | Relay module with 2 switching relays 12V. Can be controlled directly from microcontroller pins (Arduino and similar) in optocoupler mode with jumper removed (JD-Vcc). The maximum load current is 10A at a voltage of 250V. Dual channel relay module. Can be directly controlled by most microcontrollers: Arduino, AVR, PIC, ARM and MSP430. Specifications: Trip current: 15-20mA at 12V Control: 5V TTL, which can be supplied directly from the output of the microcontroller Switched load: 10A at 250V. | 27 | — | — | Relay/Switching Modules | |||
| 25558 | CHINA | — |
41 грн.
|
— | The five-volt two-channel relay module is designed to control two power loads via Arduino or other controllers. To use the relay module, you need to connect a controlled device to it. Then you need to connect 5V power to the VCC and GND pins of the module. Then it is necessary to connect a microcontroller, computer or other control device to the control terminals IN1 - IN2 of the relay module and start working. The relay module has two interfaces - for connecting the control microcontroller and for connecting controlled devices to the relay. A 4-pin connector is used to connect the relay module to the control device. Contacts GND and VCC for connecting the supply voltage 5V, outputs IN1 - IN2 for connecting the control signal. To connect the load to the relay, there are 6 screw contacts on the board, 3 for each relay. The relay module can be powered both from the control controller and from external power sources. If full galvanic isolation is required, connect VCC to the Arduino's +5V output, but do not connect GND. Remove the VCC - JDVCC jumper. Connect separate +5V to the JDVCC and GND pins on the board to power the transistors and relay coil. Module Specifications: Supply voltage, V 5 Operating current, mA 15 ... 20 Relay SRD-05VDC-SL-C Module dimensions, mm 49x38x20. | 28 | — | — | Relay/Switching Modules | |||
| 25580 | CHINA | — |
99 грн.
|
— | This module is designed for switching AC voltage. Often, a solid state relay serves as an on /off switch for high-power circuits. Using this module, you can connect a control circuit, control electric motors, maintain one temperature in industrial production processes, etc. The module board is designed based on 2 Weiba solid state relays, 2 LEDs (indicate the state of the relay), and other auxiliary components that ensure the correct operation of the module. A solid state relay has the same functions as an electromagnetic one. The main feature of this relay is the absence of mechanical parts, which ensures silent operation of the module and a longer period of its operation. Due to the fact that the isolation is provided by an opto-triac, it is not possible to switch a DC load with this relay. The solid state relay consists of 4 circuits: primary, trigger, switching and protection. The first circuit is designed to receive the control signal and provide isolation between the input and output circuits. The trigger circuit switches the relay output, and the switching circuit energizes the load. The last circuit is designed to protect the relay from possible damage. The load can be a device with a current of up to 2 A, where the AC voltage range is in the range from 75 to 264 V. Also, the features of a solid state relay are: small dimensions, built-in noise protection, high speed and long service life. There are 3 terminal blocks on the module board for connecting the load, power supply and control device. Terminal pin assignments: DC+: supply voltage DC-: "ground" CH1: control signal for load 1 CH2: control signal for load 2 SW1: load 1 SW2: load 2 When the signal level is low, the relay closes, respectively, when the signal is high, the relay opens. Relay specifications: Switching voltage, V 75 ... 264 Maximum load current, A 2 Control voltage, V 5 Module dimensions, mm 55 x 33 x 25. | 21 | — | — | Relay/Switching Modules | |||
| 25592 | CHINA | — |
33 грн.
|
— | The 4-digit seven-segment indicator module is used to output digital information. Due to the small dimensions of the module, it can be used in the design of small-sized devices (desk clock, thermometer, etc.). The module is designed based on the TM1637 driver. The TM1637 chip has 10 pins and is made in the SO20-300 package. The driver is designed to maintain communication between the 4-digit seven-segment indicator module and the connected microcontroller device. One of the features of the module is the presence of an hour separator, in the form of a colon, so it is often used in designing clocks on the Arduino platform. The indicator glow color is red. The module is connected to the microcontroller device using the I2C bus. There are 4 outputs on the board of a 4-digit seven-segment indicator: VCC: supply voltage 3.3 or 5V GND: ground CLK: bit clock DIO: data bus Power is supplied from an external power supply, the Arduino platform, or any other microcontroller device. The module supply voltage range is from 3.3 to 5 V. To work with the module in the Arduino IDE, you need to install the "TM1637" library. Module Specifications: Chip TM1637 Supply voltage, V 3.3 ... 5 Consumption current, mA 80 Glow color red Module dimensions, mm 50 x 31 x 15. | 8 | — | — | Information display | |||
| 25571 | CHINA | — |
78 грн.
|
— | The 12-volt 4-channel relay module is designed to control four power loads via Arduino or other controllers. To use the relay module, you need to connect a controlled device to it. Then you need to connect 12V power to the Vcc and Gnd terminals of the module. After that, you can connect a microcontroller, computer or other control device to the control terminals IN1-IN4 of the relay module and start working. The relay module has two interfaces - for connecting the control microcontroller and for connecting controlled devices to the relay. A 6-pin connector is used to connect the relay module to the control device. Contacts GND and VCC for connecting the supply voltage 12V, terminals IN1-IN4 for connecting the control signal. To connect the load to the relay, there are 12 screw contacts on the board, 3 for each relay. The relay module can be powered exclusively from external power sources. Specifications: relay operating current: 10 - 15mA (each) relay supply voltage 12V relay SRD-12VDC-SL-C AC250V 10A overall size: 49 x 51 x 18 mm. | 50 | — | — | Relay/Switching Modules | |||
| 25560 | CHINA | — |
140 грн.
|
— | The five-volt eight-channel relay module is designed to control up to eight power loads via Arduino or other controllers. To use a relay module, you need to connect a controlled device to it. Then you need to connect 5V power to the Vcc and Gnd pins of the module. After that, you can connect a microcontroller, computer or other control device to the control terminals IN1-IN8 of the relay module and start working. The relay module has two interfaces - for connecting the control microcontroller and for connecting controlled devices to the relay. A 10-pin connector is used to connect the relay module to the control device. Contacts GND and VCC for connecting the supply voltage 5V, outputs IN1-IN8 for connecting the control signal. To connect the load to the relay, there are 24 screw contacts on the board, 3 for each relay. The relay module can be powered both from the control controller and from external power sources. If full galvanic isolation is required, connect Vcc to the Arduino's +5V output, but do not connect GND. Remove the Vcc-JDVcc jumper. Connect separate +5V to the JDVcc and GND pins on the board to power the transistors and relay coil. Specifications: relay operating current: 10 - 15mA (each) relay supply voltage 5V relay SRD-05VDC-SL-C AC250V 10A overall size: 138 x 56 x 18 mm. | 110 | — | — | Relay/Switching Modules | |||
| 25559 | CHINA | — |
140 грн.
|
— | The 12V 8 Channel Relay Module is designed to control up to eight power loads via Arduino or other controllers. To use the relay module, you need to connect a controlled device to it. Then you need to connect 12V power to the Vcc and Gnd terminals of the module. After that, you can connect a microcontroller, computer or other control device to the control terminals IN1-IN8 of the relay module and start working. The relay module has two interfaces - for connecting the control microcontroller and for connecting controlled devices to the relay. A 10-pin connector is used to connect the relay module to the control device. Contacts GND and VCC for connecting the supply voltage 12V, terminals IN1-IN8 for connecting the control signal. To connect the load to the relay, there are 24 screw contacts on the board, 3 for each relay. The relay module can be powered exclusively from external power sources. Specifications: relay operating current: 10 - 15mA (each) relay supply voltage 12V relay SRD-12VDC-SL-C AC250V 10A overall size: 138 x 56 x 18 mm. | 110 | — | — | Relay/Switching Modules | |||
| 25631 | CHINA | — |
36 грн.
|

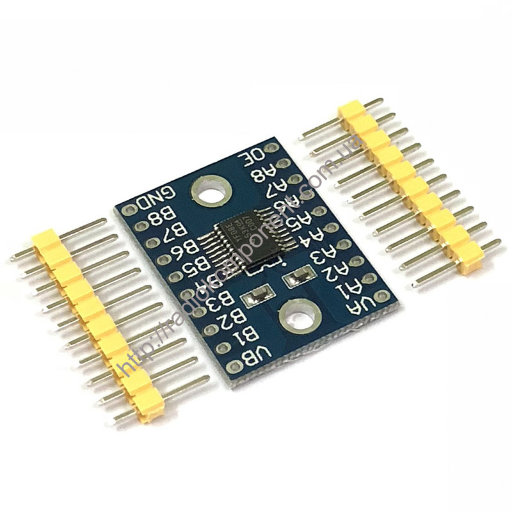

— | Bidirectional eight-channel logic level converter of digital signals on the TXS0108E chip. | 3.5 | — | — | Converters | |||
| 25620 | CHINA | — |
98 грн.
|
— | The AD7705 is a dual 16-bit ADC (Analog to Digital Converter). This module is an auxiliary device that is designed to convert an analog signal into a digital alert for the Arduino platform. The module board is designed based on the TM7705 chip (similar to AD7705), a quartz resonator, an LM-285-25 chip and other auxiliary components that ensure the correct operation of the module. The TM7705 is a dual channel ADC with differential inputs. The input signal passes through an amplifier, after which it goes to an analog modulator. The signal then goes to an internal digital filter. You can adjust the filter cutoff threshold, since the previously obtained filter value can be transferred from the internal register. Thanks to the built-in interface, you can set the gain, signal polarity and sample rate. The amplification range is from 1 to 128 times. The module board is connected to the microcontroller device using the SPI interface. Connection pin assignments: GND: ground VCC: supply voltage RST: reset CS: chip selection SCK: clock line DIN: data input (data transfer from microcontroller to ADC) DOUT: output data (data transfer from ADC to microcontroller) DRDY: data ready (ADC status monitoring) Power is supplied from the Arduino platform or other microcontroller device. The supply voltage range is from 3.3 to 5 V. Module Specifications: Chip TM7705 Supply voltage, V 3.3 ... 5 SPI interface Gain range, times 1 ... 128 | 2.8 | — | — | ADC/DAC | |||
| 25651 | CHINA | — |
97 грн.
|

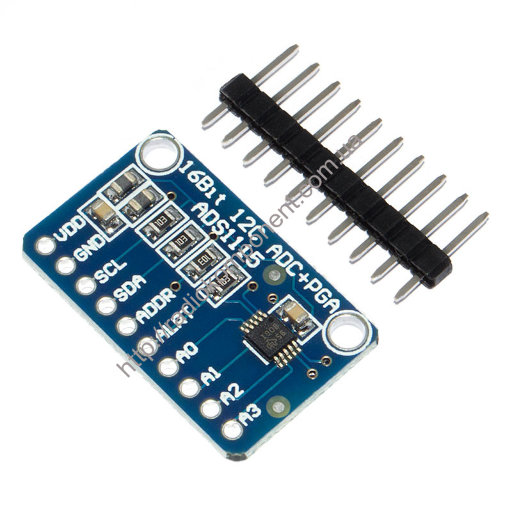

— | The 16-bit 4-channel ADC module on the ADS1115 chip will significantly expand the capabilities of a microcontroller or minicomputer in the field of working with analog signals. The microcircuit contains a high-precision reference voltage source with ultra-low drift. The microcircuit is also distinguished by a very low current consumption in continuous conversion mode. | 2.1 | — | — | ADC/DAC | |||
| 25629 | CHINA | — |
35 грн.
|

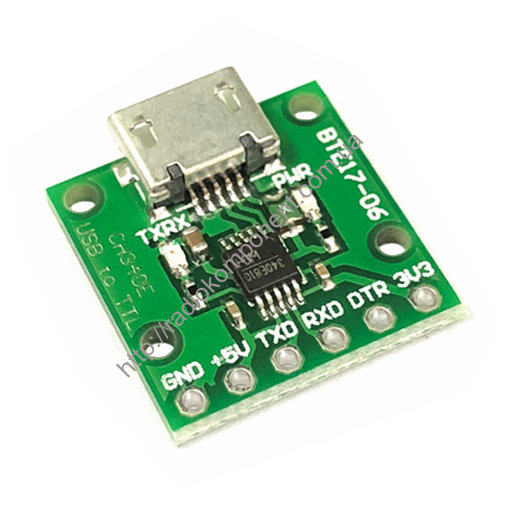

— | CH340 MINI USB to UART converter module. | 2 | — | — | Converters | |||
| 25576 | CHINA | — |
70 грн.
|
— | DFPlayer is a miniature MP3 module with a built-in power amplifier and the ability to connect a speaker up to 3W. The player can be used as a standalone module or in combination with an Arduino compatible controller. DFPlayer supports common MP3, WAV and WMA audio formats. Supports TF cards with FAT16, FAT32 file system. All that is needed is to write a set of phrases to a microSD card, insert the card into the module and, at the right time, call the “play” function with the number of the desired song. At any time, it is possible to pause playback and then resume from the same place. The module supports up to 25500 fragments of phrases, signals or melodies. All audio files can be divided into groups of 255 songs. You can choose from 30 volume levels and 6 equalizer modes. If you need to use the module as a regular player, then you do not need to allocate additional digital inputs for control buttons. The module has two inputs to which you can connect up to 20 buttons. Pin Description VCC Meals "+" GND Power "-" RX UART receive TX UART transmission SPK1 Loudspeaker "+" SPK2 Loudspeaker "−" BUSY Status indicator ("0" - simple, "1" - playing) DAC_R Headphone or amplifier output (R channel) DAC_L Headphone or amplifier output (channel "L") IO1 Control input: short press - "back", long - reduce the volume IO2 Control input: short press - "forward", long press - increase the volume ADKEY1 Resistive keyboard port, input 1 ADKEY2 Resistive keyboard port, input 2 USB+ USB port, "+" port USB- USB port, port "-" Module Specifications: Supply voltage: 3.3-5V Number of channels: 1 (mono, 3W) + 2 (stereo, no amplifier) Supported sample rates: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz DAC bit depth: 24 bits Signal-to-noise ratio: up to 85 dB Supported file systems: FAT16, FAT32 Maximum SD card capacity: 32 GB Number of song directories: up to 100 Number of songs in the catalog: up to 255 Audio file formats: MP3, WAV, WMA Number of volume levels: 30 Equalizer modes: 6 (Normal/Pop/Rock/Jazz/Classic/Base). | 4 | — | — | Light, sound | |||
ESP-05 WI-FI ESP8266 module
#13498
|
25624 | CHINA | — |
102 грн.
|
— | WiFi module based on single-chip system (SoC) ESP8266. It has a small size compared to other modules and ULP technology. The module is specially designed for the creation of mobile devices and the Internet of things (IoT). Peculiarities: - Support for wireless standard 802.11 b/g/n; - Support for 2 modes of operation Wi-Fi Direct (P2P), soft-AP; - Integrated stack protocol TCP /IP; - Integrated TR switch, balun, LNA, amplifier and network matcher; - Integrated PLLs, regulators, DCXO and power management unit; - Output power in 802.11b mode: +19.5dBm; - Support for connecting multiple TCP Clients; - Leakage current when power off - Integrated 32-bit microcontroller; - Interfaces SDIO 1.1/2.0, SPI, UART; - STBC technology, 1×1 MIMO, 2×1 MIMO; - A-MPDU and A-MSDU aggregation and 0.4ms guard interval; - Receiving/transmitting packets - Standby power consumption | 1.5 | — | — | WI-FI, GSM, Bluetooth, Ethernet | ||
| 25622 | CHINA | — |
103 грн.
|
— | The GY-271 module is a 3-axis digital compass designed for navigation using weak magnetic fields. This module can be used in the navigation system, self-made robots, quadcopters, airplanes, etc. The GY-271 module board is designed based on the QMC5883L chip (similar to HMC5883L), DC-DC voltage converter and other auxiliary components, which ensure the correct operation of the module. The QMC5883L chip is a digital compass with an accuracy of 1 to 2°. The features of this digital compass are: 5V supply voltage and low power consumption (75 µA). The gain depends on the magnetic field. If you use this sensor as a simple compass, it must be fixed on a flat surface. Please note that metal objects located close to the module (about 30 cm) strongly distort its readings. If necessary, the GY-271 sensor can be calibrated. For this you need to download MagMaster (the instruction is inside the file). The calibration process can be found at site . The GY-271 module is controlled by the I2C bus. Module address 0x0D. Pin assignments of the digital compass board: VCC: supply voltage GND: ground SCL: clock line SDA: data line DRDY: module ready To work with the module in the Arduino IDE development environment, you need to download the QMC5883L library, and then install it yourself. This module is not compatible with the HMC5883L library. Power is supplied from the Arduino platform or other microcontroller device. The supply voltage is 3.3/5V. Module Specifications: Chip QMC5883L Supply voltage, V 3.3 / 5 I2C interface Measurement range, Gauss ±8 Bit depth of conversion, bit 12 Module dimensions, mm 14.5 x 13.5 | 1.5 | — | — | Arduino sensors | |||
| 25648 | CHINA | — |
36 грн.
|
— | Specifications: • Supply voltage: DC 1.8...3.6 V; • Interface: I2C; • Maximum I2C connection speed: 3.5 MHz; • Noise level: Up to 0.02 hPa; • Measuring range: 300...1100 hPa (-500...+9000 meters); • Packing: OEM; • Device dimensions: 15 x 13 x 11 mm. | 1.2 | — | — | Arduino sensors | |||
| 25621 | CHINA | — |
42 грн.
|
— | GY-BMP280-3.3 is a high precision atmospheric pressure sensor. In addition to measuring atmospheric pressure, the sensor is able to determine the altitude and ambient temperature. Thus, this allows you to use the module to build a home weather station, as well as to create such devices as: barometer, altimeter, etc. Also, this module is often used in homemade aircraft, quadrocopters, etc. The module board is designed based on the improved BMP280 chip and other auxiliary components. The microcircuit is an atmospheric pressure sensor, which has 8 pins and is made in a metal case. ADC resolution increased to 20 bits. The accuracy of measuring barometric pressure is 1 hPa, temperature 1 °C, and altitude up to 1 m. The atmospheric pressure module supports I2C and SPI serial interfaces, which allows you to connect the sensor to the Arduino platform or other microcontroller devices without any problems. Module board pin assignments: VCC: supply voltage 3.3V GND: ground SCL: clock line SDA: data line CSB: slave output SDO: serial data output The GY-BMP280-3.3 module can work in 3 modes: SLEEP: low power mode or "sleep" mode FORCED: measures the required parameters on command NORMAL: self-measures parameters after a predetermined time The module is powered from an external power source, Arduino platform or other microcontroller device. The module supply voltage range is from 1.7 to 3.6 V. Module Specifications: Chip BMP280 Supply voltage, V 1.7 ... 3.6 I2C interface speed, MHz 3.4 Maximum pressure value, hPa 1100 Noise level, Pa 0.2 Height sensitivity, m 1 ADC resolution, bit 20 Module dimensions, mm 21 x 18 | 1.5 | — | — | Arduino sensors | |||
| 25789 | CHINA | — |
28 грн.
|
— | The HW-040 (KY-040) module consists of a rotation angle sensor (encoder) and auxiliary electrical components for stable operation of the sensor. An encoder is a mechanical sensor that reports the angle of rotation, rotation speed and direction of the axis of various devices. This module can be used to control servos or stepper motors. The HW-040 module has 20 fixed positions per revolution. These positions represent a small click when the encoder axis is rotated. The rotation angle sensor has 3 outputs, which are designated (A, B, C). The principle of operation of the encoder is to change the positions of the switches. One switch is responsible for connecting pins A and B, and the second for pins B and C. Each change in the position of the sensor axis changes the states of the switches. In addition, the encoder is equipped with a button that works when the shaft is pressed. The button can be used to select menu items of the device or to change the sensitivity of the sensor. A low TTL level appears on the sensor when the contacts are closed, then zero is applied to the CLK and DT pins. A high logic level is generated when a 5V supply voltage is applied. Pins CLK and DT transmit data about the rotation of the axis in the direction of clockwise or counterclockwise. CLK: encoder pin A DT: encoder pin B SW: defines the state of the button VCC (+): supply voltage GND: ground (pin C) As a power source, you can use an external power supply, the Arduino platform, or any other microcontroller device. Supply voltage, V 3 ... 15 Number of fixed positions 20 Axle diameter, mm 6 Module dimensions, mm 20 x 30 x 30. | 7 | DIP | 1 PC. | Keyboards, joysticks | |||
| 25616 | CHINA | — |
85 грн.
|
— | The INA219 module is a digital sensor designed to measure current, voltage and power. The main advantages of this meter are: high accuracy of current and voltage measurements and small dimensions, which expand the scope of the sensor. The module can be used in systems where it is necessary to control current and voltage readings. The range of measured voltages of the sensor is from 0 to 26 V. The basis of the sensor is the INA219 chip, which reads the voltage on the shunt. After reading the data, they are stored in the registers of the microcircuit. The shunt resistance is 0.1 ohm. The resistive shunt is in open with positive power, which ensures that there are no potential shifts between GND and other devices. A 12-bit ADC (analogue-to-digital converter) is built into the microcircuit, with which the parameters are measured. Measurement data is transmitted via the I2C serial interface at up to 3.4 Mbps. It is connected to the SCL (clock passing) and SDA (data transfer) pins. You can also change the module interface address. To do this, you need to install jumpers on the marked pins A0 and A1 by soldering. Changing the board address allows you to create 4 combinations per I2C interface, so you can connect 4 similar modules. You can supply power to the module board using an external power source, from the Arduino board or other microprocessor device. Sources are connected to the sensor via the VCC and GND pins. To connect the measured power source, you can use the VIN+ and VIN- contacts or connect it using a terminal block. The polarity of connecting the power supply terminals is drawn on the board (on the right side - a negative charge, on the left - a positive charge). To further work with the sensor in the Arduino IDE development environment, you will need a library that can be downloaded. The module also includes a non-soldered pin connector and a terminal block. If necessary, they can be placed on the board using soldering. Sensor Specifications: Chip INA219 Supply voltage, V 3 ... 5.5 ADC bit depth, bit 12 Range of measured voltages, V 0 ... 26 Maximum measured current, A 3.2 Discreteness when measuring current, mA 0.8 Data transfer rate via I2C, Mbps 3.4 Operating temperature range, °C -40 ... +125 Module dimensions, mm 23 x 21 | 3.5 | — | — | ADC/DAC | |||
| 25601 | CHINA | — |
14 грн.
|
— | The RGB SMD LED module RKP-RGB-LED5050 is designed to be used with devices using the ARDUINO platform (Arduino). At first glance, RGB LEDs look just like ordinary LEDs, but they actually have three LEDs inside: one red, one green, and one blue. By controlling the brightness of each one, you can control the color of the LED. There are two elements on the RGB-5050 module board: a three-color LED SMD 5050 and a 4-pin connector. The LED contains three crystals of red, green and blue colors. They can light up simultaneously or alternately. The SMD RGB LED module is used to indicate the operating modes of devices, to illuminate LCD indicators and keys. It is used in toys and complex entertainment equipment. Multi-color lighting provides a wide scope for design solutions, which is important in advertising, for decorating clubs, concert halls and during various public events. The original effect is created by highlighting water and ice sculptures. 3 color LED module for Arduino. Analog outputs on the Arduino use "pulse width modulation" to produce varying amounts of current. You can feed all three color inputs on the LED with a different PWM signal value in the range from 0 to 255, which will allow you to get almost any color out of 16,000,000 possible. Great for solderless breadboards. Specifications of the RGB-5050 module: Supply voltage: 3.3 - 5 V LED: 5050 full-color LED Size: 15 x 10.6mm Characteristics of LED SMD 5050 LED: Glow colors: - intense red - pure green - blue Brightness: - red 0.72 candela - green 1.3 candela - blue 0.35 candela Current of each LED: - nominal 20 mA - limit constant 25 mA - limit pulse 100 mA Forward rated voltage: - red 2 V - green 3.4V - blue 3.4V - limit reverse voltage 5 V Contacts: Pin labeled "-" - GND minus power The pin labeled "R" is the input (positive) of the red LED Pin labeled "G" is the input (positive) of the green LED The pin labeled "B" is the input (plus) of the blue LED | 1.2 | — | — | Light, sound | |||
| 25632 | CHINA | — |
24 грн.
|

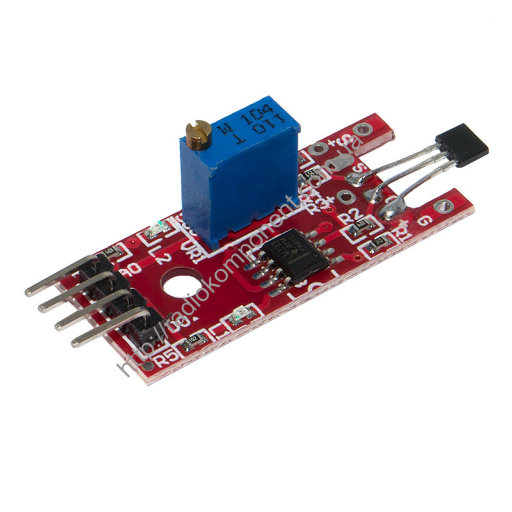

— | "KY-024" - the module contains a magnetic Hall sensor, a comparator and has a universal design with 2 outputs: digital and analog. Can be used to detect the magnetic field near the sensor. The module is easily connected to Arduino or other microcontrollers. supply voltage, V: 5 Connection: “A0” – real time output voltage (analog output) “G” – GND (common) “+” - power plus “D0” – digital output, threshold voltage adjustable by potentiometer. | 3 | — | — | Arduino sensors | |||
| 25605 | CHINA | — |
107 грн.
|
— | This module is a MAX30100 heart rate sensor that is designed to read heart rate or pulse oximetry. The sensor is widely used in medical devices for various purposes. The module board is designed around the MAX30100 sensor and other accessories that ensure the correct operation of the sensor. The MAX30100 chip consists of two LEDs (red and infrared), a photodetector, an analog amplifier, an interface module, and a digital processor. The features of this sensor are: the presence of a low level of intrinsic noise and suppression of external illumination. Also, the microcircuit has a high sampling rate, resistance to vibration when taking readings and a reliable measurement process. The MAX30100 chip is controlled using software registers. The sensor data is stored in the FIFO buffer. When measuring the pulse, red and IR channels are used. The sensor can change the temperature dependence of SpO2 measurements. The resolution of the temperature sensor is 0.0625 °C. The module connects to the Arduino platform or other microcontroller devices using the I2C serial interface. Pin assignments: GND: ground RD: red LED driver IRD: IR LED driver INT: interrupts SDA: data line SCL: clock line UIN: supply voltage The LCD display can be used to visualize the sensor parameters. The screen is connected using pins: SCL and SDA. To work with the module in the Arduino IDE development environment, you need to download the library, and then install it yourself. Power is supplied from an external power supply, Arduino platform or other microcontroller device. The module supply voltage is 5 V. Module Specifications: Chip MAX30100 Supply voltage, V 5 (internal stabilizer) Current consumption in measurement mode, mA 1.2 Current consumption in sleep mode, µA up to 10 I2C interface Maximum interface frequency, kHz 400 Module dimensions, mm 18.5 x 14.4 x 3 | 1 | — | — | Arduino sensors | |||
| 25594 | CHINA | — |
105 грн.
|
— | The MAX6675 module, together with a thermocouple, allows you to measure the temperature of objects and the environment. Connects to a K-type thermocouple sensor. The sensor measures temperature readings in the range 0 - 1024 °C. But since the thermocouple body is designed for 600°C, the maximum temperature that can be measured is 600°C. The adapter can be used in a soldering station, boiler, digital thermometer, oven or in devices where temperature control is required. The temperature measurement module is based on the MAX6675 chip. The main task of the microcircuit is to convert the received K-type thermocouple signals into a digital temperature value. The sensor signal is sent to the operational amplifier of the microcircuit, and then it is processed by a 12-bit ADC (analogue-to-digital converter), after which the data is transferred to the microcontroller's memory via the SPI serial interface. There is no MOSI pin on the SPI bus, so the data from the chip is transmitted only to the controller. The main feature of the MAX6675 chip is the cold junction compensation function, which is implemented thanks to the built-in temperature sensor. The sensor is connected to the Arduino platform using the SPI interface through 3 pins. The SCLK pin is required to transmit the clock signal, CS is used to select the microcircuit, and information is transmitted through the D0 pin from the temperature sensor to the microcontroller device. 5V power can be supplied to the sensor from an external power supply, Arduino Uno board, or other microcontroller device. Power for the sensor is supplied to the VCC (+5 V) and GND ("ground") pins. The thermocouple terminals are connected to the clamp. The connection polarity is shown on the sensor board. The MAX6675 sensor library is not a standard Arduino IDE library, so you need to download it and install it yourself. Thermocouple and connecting wires are not included in the module package. Module Specifications: Chip MAX6675 Supply voltage, V 3 ... 5.5 Current consumption, mA 1.5 Temperature range measured by the module, °C 0 ... 1024 Thermocouple operating temperature range, °C 0 ... 600 Thermocouple cable length, m 0.5 Scheme for connecting the module to Arduino Uno: | 5.2 | — | — | ADC/DAC |
