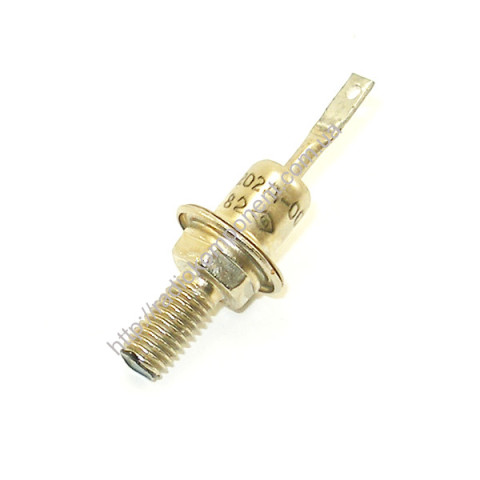

Diode 2D202D (=KD202D)
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КДЮ-11 | |
| Diode type | Rectifier | |
| Urev. max, V | 200V | |
| Ipr. max. | 5A | |
| Brand name | СНГ | |
| Mounting type | Screw | |
| Weight g. | 5 | |
| Factory packaging | 100 pieces. |
Description
The main technical characteristics of the diode 2D202D:
• Uobr and max - Maximum impulse reverse voltage: 200 V;
• Inp max - Maximum forward current: 5 A;
• fd - Operating frequency of the diode: 1.2 kHz;
• Unp - DC forward voltage: no more than 0.9 V at Inp 5 A;
• Iobr - Constant reverse current: no more than 800 µA at Uobr 200 V.
