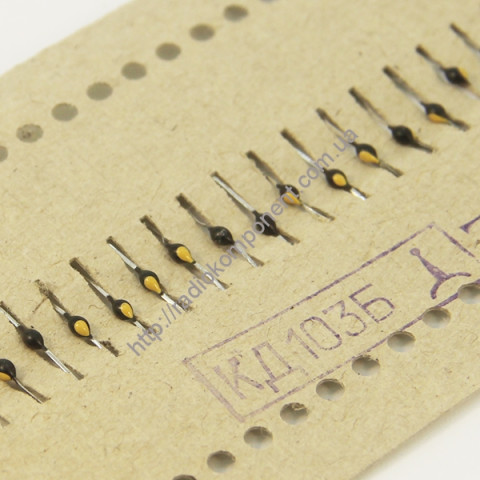

Diode KD103B
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-30 | |
| Diode type | Rectifier | |
| Urev. max, V | 50V | |
| Ipr. max. | 100mA | |
| Brand name | СНГ | |
| Mounting type | DIP | |
| Weight g. | 0.1 | |
| Factory packaging | 500pcs |
Description
The main technical characteristics of the KD103B diode:
• Uopp max - Maximum direct reverse voltage: 50 V;
• Inp max - Maximum forward current: 50 mA;
• fd - Operating frequency of the diode: 20 kHz;
• Unp - DC forward voltage: no more than 1.2 V at Inp 100 mA;
• Iobr - Constant reverse current: no more than 0.5 μA at Uobr 50 V;
• tvoc arr - Reverse recovery time: 4 µs;
• Sd - Total capacitance: 20 pF at Uobr 5 V.
