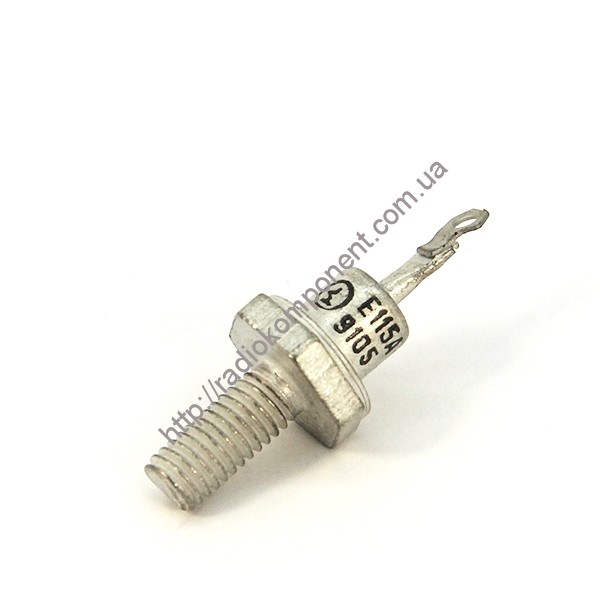

Diode E115A (=KD219A)
| Manufacturer | СНГ |
| SKU | |
| Categories | Diodes domestic |
Features
| Type | Description | |
|---|---|---|
| Diode design | single | |
| Type of shell | КД-11 | |
| Diode type | Schottky | |
| Urev. max, V | 15V | |
| Ipr. max. | 10A | |
| Brand name | СНГ | |
| Mounting type | Screw | |
| Weight g. | 5.2 | |
| Factory packaging | 100 pieces. |
Description
Diodes KD219A silicon, epitaxial, with a Schottky barrier.
Designed for use in low-voltage secondary power supplies at frequencies of 10...200 kHz.
The main technical characteristics of the diode 2KD219A:
• Uobr and max - Maximum impulse reverse voltage: 15 V;
• Inp max - Maximum forward current: 10 A;
• Inp and max - Maximum pulse forward current: 250 A;
• Unp - DC forward voltage: no more than 0.6 V at Inp 10 A;
• fmax - Maximum operating frequency of the diode: 200 kHz.
